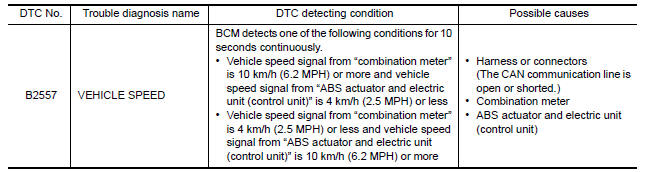

DTC DETECTION LOGIC
NOTE:
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and wait 10 seconds or more.
2. Drive the vehicle at a vehicle speed of 10 km/h (6.2 MPH) or more for 10 seconds or more.
3. Check DTC in Self Diagnostic Result mode of BCM using CONSULT.
Is DTC detected?
YES >> Go to SEC "Diagnosis Procedure".
NO >> Inspection End.
1.CHECK DTC OF "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)"
Check DTC in Self Diagnostic Result mode of ABS using CONSULT.
Is DTC detected?
YES >> Perform the trouble diagnosis related to the detected DTC. Refer to BRC "DTC Index".
NO >> GO TO 2.
2.CHECK DTC OF COMBINATION METER
Check DTC in Self Diagnostic Result mode of METER/M&A using CONSULT.
Is DTC detected?
YES >> Perform the trouble diagnosis related to the detected DTC. Refer to MWI "DTC Index".
NO >> GO TO 3.
3.CHECK INTERMITTENT INCIDENT
Refer to GI "Intermittent Incident".
>> Inspection End.
Transmission assembly
Exploded View
1. Transaxle assembly
A : For the tightening torque, refer to TM "Removal and Installation".
Removal and Installation
WARNING:
Do not open the radiator cap or drain plug when the engine is hot.
Hot liquid may spray out, causing
serious injury.
Perform the ...
Steering wheel turning force is heavy or light
Description
Steering wheel turning force is heavy or light.
Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS
With CONSULT
Turn the ignition switch OFF to ON.
Perform "EPS" self-diagnosis.
Is any DTC detected?
YES >> Check the DTC. Refer to STC "DTC Index".
NO >> GO ...
