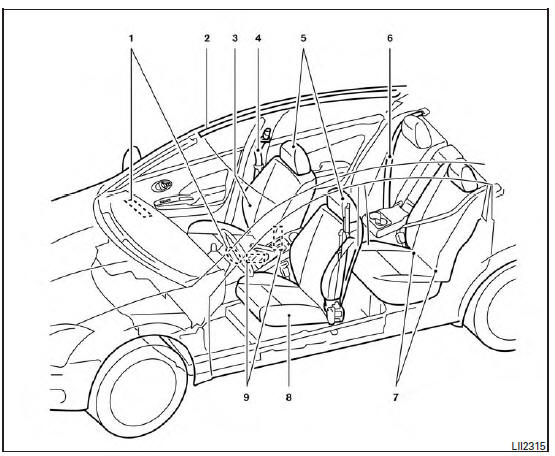

Air bags, seat belts and child restraints

1. Supplemental air bag modules

2. Roof-mounted curtain side-impact and rollover supplemental air bag

3. Front seat-mounted side-impact supplemental air bag

4. Front seat belt with pretensioner(s) and shoulder height adjuster

5. Head restraints/headrests

6. Rear seat belts

7. LATCH (Lower Anchors and Tethers for CHildren) system

8. Seats

9. Occupant classification sensor (weight sensor)

Refer to the page number indicated in parentheses for operating details.
