Nissan Versa (N17): Trunk lamp switch

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / Trunk lamp switch

Description

Detects trunk open/close condition.

Component Function Check

1.CHECK FUNCTION

With CONSULT

Check TRNK/HAT MNTR in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES >> Trunk room lamp switch is OK.

NO >> Refer to DLK "Diagnosis Procedure".

Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "INTELLIGENT KEY SYSTEM : Wiring Diagram".

1.CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL

  1. Turn ignition switch OFF.

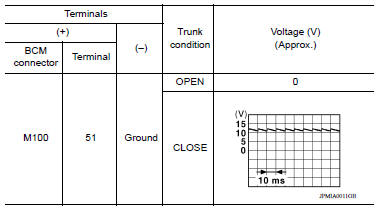

  2. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 6

NO >> GO TO 2

2.CHECK TRUNK ROOM LAMP SWITCH CIRCUIT

  1. Disconnect BCM and trunk room lamp switch connector.
  2. Check continuity between BCM connector and trunk room lamp switch connector.
  3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 3

NO >> Repair or replace harness between BCM and trunk room lamp switch.

3.CHECK TRUNK ROOM LAMP SWITCH GROUND CIRCUIT

Check continuity between trunk room lamp switch connector and ground.

Is the inspection result normal?

YES >> GO TO 4

NO >> Repair or replace trunk room lamp switch ground circuit.

4.CHECK BCM OUTPUT SIGNAL

  1. Insure trunk lid remains closed during this step.
  2. Connect BCM connector.

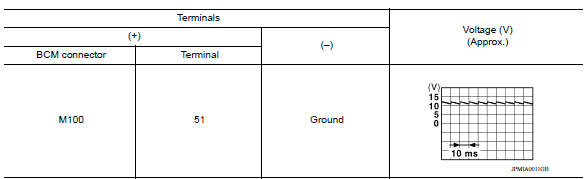

  3. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 5

NO >> Replace BCM. Refer to BCS "Removal and Installation".

5.CHECK TRUNK ROOM LAMP SWITCH

Refer to DLK "Component Inspection".

Is the inspection result normal?

YES >> GO TO 6

NO >> Replace trunk room lamp switch.

6.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Component Inspection

1.CHECK TRUNK ROOM LAMP SWITCH

  1. Turn ignition switch OFF.
  2. Disconnect trunk room lamp switch connector.
  3. Check trunk room lamp switch.

Is the inspection result normal?

YES >> Inspection End.

NO >> Replace trunk room lamp switch.
