Nissan Versa (N17): CSC (Concentric slave cylinder)

Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Clutch (CL) / CSC (Concentric slave cylinder)

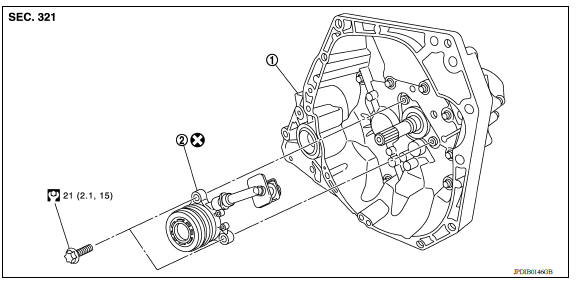

Exploded View

CSC (CONCENTRIC SLAVE CYLINDER)

1. Transaxle assembly 2. CSC (concentric slave cylinder)

Removal and Installation

CAUTION:

  • Do not reuse CSC (concentric slave cylinder). CSC slides back to the original position every time when removing transaxle assembly. At this time, dust on the sliding parts may damage the seal of CSC and may cause clutch fluid leakage.
  • Do not disassemble CSC.
  • Do not spill clutch fluid onto painted surfaces. If fluid spills, wipe up immediately and wash the affected area with water.

REMOVAL

  1. Remove transaxle assembly. Refer to TM, "Removal and Installation".
  2. Remove CSC bolts and the CSC from clutch housing.

CSC (CONCENTRIC SLAVE CYLINDER)

INSTALLATION

    1.   Install CSC to clutch housing and then tighten CSC bolts to the specified torque.

CAUTION:

  • Do not reuse CSC.

  • Do not insert and operate CSC when transaxle is removed. Piston and stopper of CSC components may fall off.

    2.   Install transaxle assembly. Refer to TM, "Removal and Installation".

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for fluid leakage and fluid level. Refer to CL, "Inspection".

ADJUSTMENT AFTER INSTALLATION

Perform the air bleeding. Refer to CL, "Air Bleeding".
