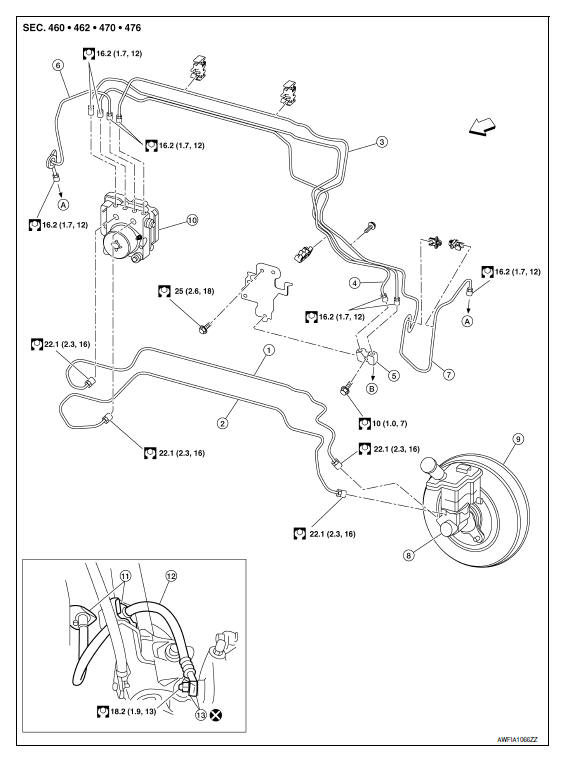

FRONT : Exploded View
1. Master cylinder brake pipe assembly
(front)
2. Master cylinder brake pipe assembly
(rear)
3. ABS actuator to connector brake
pipe assembly (RH)
4. ABS actuator to connector brake
pipe assembly (LH)
5. Brake pipe connector 6. Brake pipe assembly (RH front)
7. Brake pipe assembly (LH front) 8. Master cylinder assembly 9. Brake booster
10. ABS actuator and electric unit (control
unit)
11. Lock plate 12. Front brake hose
13. Copper sealing washer A. To front brake hose B. To rear brake pipe
Front
1. ABS actuator and electric unit (control
unit)
2. Front disc brake 3. Master cylinder assembly
4. Brake booster 5. Connector 6. Rear drum brake
A. Brake pipe B. Brake hose
: Flare nut
: Union bolt
CAUTION:
NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
REMOVAL
CAUTION:
CAUTION: Do not reuse copper sealing washers.
INSTALLATION
CAUTION: Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
Align the brake hose L-pin by aligning it with the brake caliper assembly hole, and tighten the union bolt (1) to the specified torque.
CAUTION: Do not reuse copper sealing washers.
CAUTION: Check that the brake hoses and pipes are not bent or twisted.
CAUTION: Do not scratch the flare nut and the brake tube.
CAUTION: Do not reuse drained brake fluid.
INSPECTION AFTER INSTALLATION
CAUTION: Clearance with brake hose and each parts being secured more than 10 mm (0.39 in) in unladen condition*.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
CAUTION: Retighten the applicable connection to the specified torque and repair any abnormal (damaged, worn or deformed) part if any brake fluid leakage is present.
Exploded View 1. Clevis pin 2. Brake pedal assembly 3. Brake pedal pad 4. Stop lamp switch 5. Clip 6. Snap pin 7. ASCD cancel switch (if equipped) NOTE: CVT and A/T brake pedal assemblies sh ...
REAR : Exploded View 1. Rear brake pipe assembly (RH) 2. Rear brake pipe assembly (LH) 3. Lock plate 4. Rear brake hose 5. Wheel cylinder brake pipe assembly A. To rear brake hose B. To brak ...
