OUTLINE

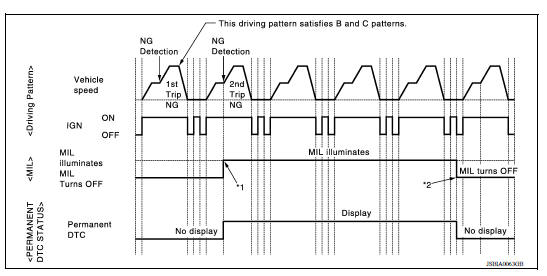

When a DTC is stored in ECM When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.
*1: When the same malfunction is detected in two consecutive trips, MIL will illuminate.
*2: MIL will turn off after vehicle is driven 3 times (driving pattern B) without any malfunctions.
When a DTC is not stored in ECM The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.
NOTE: If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the permanent DTC is not erased, perform the procedure of Group A.
×: Applicable -: Not applicable
*: For group, refer to EC, "DTC Index".
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON.

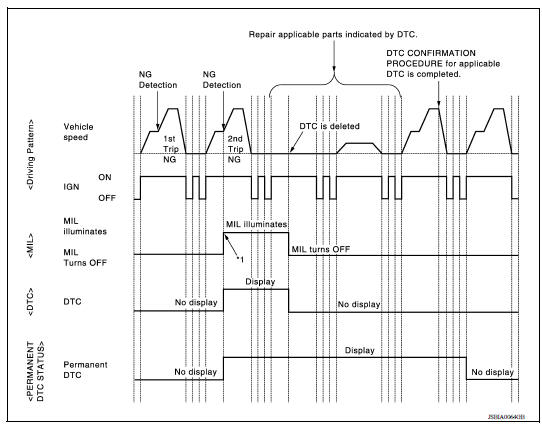

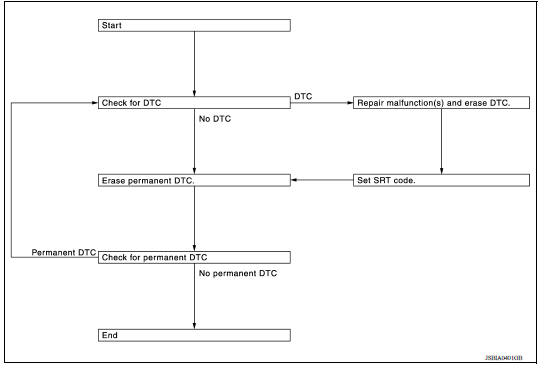

PERMANENT DTC SERVICE PROCEDURE
*1: When the same malfunction is detected in two consecutive trips, MIL will illuminate.
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC.
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
With GST
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.PERFORM DTC CONFIRMATION PROCEDURE
Perform "DTC CONFIRMATION PROCEDURE" for DTCs which are the same as permanent DTCs stored in ECM.
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
With GST
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END

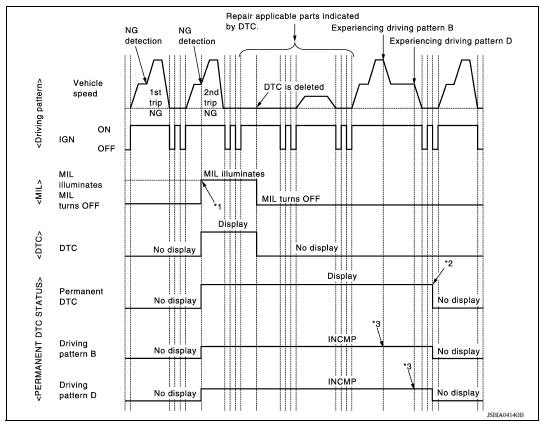

*1: When the same malfunction is detected in two consecutive trips, MIL will illuminate.
*2: After experiencing driving pattern B and D, permanent DTC is erased.
*3: Indication does not change unless the ignition switch is turned from ON to OFF twice even after experiencing driving pattern B or D.
NOTE: Drive the vehicle according to only driving patterns indicating "INCMP" in driving patterns B and D on the "PERMANENT DTC STATUS" screen.
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC.
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
With GST
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.DRIVE DRIVING PATTERN B
CAUTION:
With CONSULT
With GST
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
With GST
Is any permanent DTC detected?
YES >> GO TO 5.
NO >> END
5.DRIVE DRIVING PATTERN D
CAUTION:
Drive the vehicle according to driving pattern D. Refer to EC, "Work Procedure (Group B)".
>> GO TO 6.
6.CHECK PERMANENT DTC
With CONSULT
With GST
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
Throttle valve closed position
learning
Description
Throttle Valve Closed Position Learning is a function of ECM to learn the
fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be
performed each time harness connector
of electric throttle control actuator or ECM is discon ...
P0744 Torque converter
Description
This DTC is detected when the torque converter clutch solenoid valve is
electrically normal but the torque converter
clutch does not engage. This is not due to an electrical malfunction (circuit
open or shorted), but is
instead due to a mechanical malfunction (sticking of the cont ...
