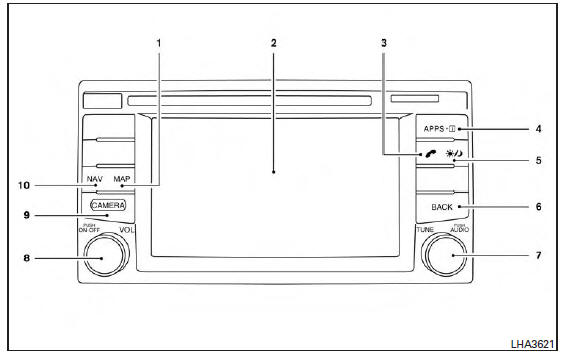

Monitor, climate, audio, phone and voice recognition systems » Control panel buttons - color screen with Navigation System (if so equipped)
How to use the   button

How to use the button

For additional information about the "SiriusXM Travel Link", and "Traffic" features, refer to the separate Navigation System Owner's Manual.

For additional information about the "My Apps" key, refer to "NissanConnectSM Mobile Apps" in this section.

For additional information about the "Voice Commands" key, refer to "NISSAN Voice Recognition System" in this section.

How to use the button

To select and/or adjust several functions, features and modes that are available for your vehicle: 1. Press the   button.

2. Touch the "Settings" key.

3. Touch the desired item.

Menu item Result
Audio For additional information, refer to "Audio system" in this section.
Navigation For additional information, refer to the separate Navigation System Owner's Manual.
Phone & Bluetooth For additional information, refer to "Bluetooth Hands-Free Phone System with Navigation System" in this section.
System Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.
  Display
  • Brightness
  • Display Mode
  • Scroll Direction
 Touch this key to adjust the appearance of the display.
  • Adjusts the brightness of the display.
  • Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. "Day" and "Night" modes are suited for the respective times of day while "Auto" controls the display automatically.
  • Adjusts the direction of the menu scroll. Choose to either move up or down.
Clock
  • Time Format
  • Date Format
  • Clock Mode
  • Set Clock Manually (if so equipped)
  • Daylight Savings Time (if so equipped)
  • Time Zone (if so equipped)
 Touch this key to adjust the time
  • The clock can be set to 12 hours or 24 hours.
  • Select from five possible formats for displaying the day, month, and year
  • Adjust the mode for the clock. "Auto" uses the system's GPS to automatically maintain the time. "Manual" allows you to set the clock using the "Set Clock Manually" key.
  • Adjust the clock manually, Touch the "+" or "-" keys to adjust the hours, minutes, day, month and year up or down. "Clock Mode" must be set to manual for this option to be available
  • Adjusts the daylight savings time on or off.
  • Choose the applicable time zone from the list.
Language Touch this key to change the language on the display
Camera Settings
  • Display Mode
  • Brightness
  • Contrast
  • Color

Temperature Unit

  • Touchscreen click
  • System Beeps
  • Return to Factory Settings/Clear Memory
  • Software Licenses
 Touch this key to change the camera settings
  • Touch this key to select the touch-screen display mode (day, night, or automatic).
  • Adjust touch-screen brightness.
  • Adjust touch-screen contrast
  • Adjust touch-screen color.
  • Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius).
  • Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on the screen is touched.
  • Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up message appears on the screen or a button on the  unit (such as the button) is pressed and held for 2 seconds.
  • Touch this key to return all settings to default and to clear the memory.
  • Touch this key to display software licensing information
Traffic (if so equipped) Touch this key to display traffic settings. For additional information, refer to the separate Navigation System Owner's Manual
SXM (if so equipped) Touch this key to start SiriusXM radio. For additional information, refer to "Audio system" in this section.
