Nissan Versa (N17): P0713 Transmission fluid temperature sensor A

Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Transaxle & transmission (TM) / P0713 Transmission fluid temperature sensor A

DTC Logic

DTC DETECTION LOGIC

DTC Trouble diagnosis name DTC detection condition Possible causes
P0713 Transmission Fluid Temperature Sensor "A" Circuit High Under the following diagnosis conditions, the A/T fluid temperature identified by TCM is − 40C (−40F) or less continuously for 5 seconds or more.

- Diagnosis condition

- Ignition switch: ON

- Vehicle speed: 10 km/h (7 MPH) or more

- Selector lever: D position

- TCM power supply voltage: 10 V <TCM power supply voltage <16 V
  • Harness or connector (Open circuit or short circuit to the power supply in the fluid temperature sensor circuit)
  • A/T fluid temperature sensor

DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.PERFORM DTC CONFIRMATION PROCEDURE

  1.  Drive the vehicle.
  2.  Maintain the following conditions for 5 seconds or more.

Vehicle speed : 10 km/h (7 MPH) or more

Selector lever : D position

3. Check the first trip DTC.

Is "P0713" detected?

YES >> Go to TM, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK CIRCUIT BETWEEN TCM AND A/T UNIT (CHECK 1)

  1. Turn ignition switch OFF.
  2. Disconnect the TCM connector and A/T unit connector.
  3. Check the continuity between the TCM harness connector and the A/T unit harness connector.

Is the check result normal?

YES >> GO TO 2.

NO >> Repair or replace malfunctioning part.

2.CHECK CIRCUIT BETWEEN TCM AND A/T UNIT (CHECK 2)

  1. Turn ignition switch ON.
  2. Check the voltage between the TCM harness connector and ground.

Is the check result normal?

YES >> GO TO 3.

NO >> Repair or replace malfunctioning part.

3.CHECK FLUID TEMPERATURE SENSOR

Check the fluid temperature sensor. Refer to TM, "Component Inspection (A/T Fluid Temperature Sensor)".

Is the check result normal?

YES >> Check intermittent incident. Refer to GI, "Intermittent Incident".

NO >> Repair or replace the malfunctioning parts.

Component Inspection (A/T Fluid Temperature Sensor)

1.CHECK A/T FLUID TEMPERATURE SENSOR

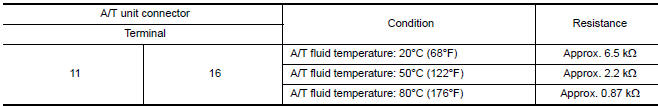

Measure the resistance between the A/T unit connector terminals.

Is the check result normal?

YES >> INSPECTION END

NO >> There is a malfunction of the A/T fluid temperature sensor. Replace the transaxle assembly. Refer to TM, "Removal and Installation".

P0712 Transmission fluid temperature sensor A

DTC Logic DTC DETECTION LOGIC DTC Trouble diagnosis name DTC detection condition Possible causes P0712 Transmission Fluid Temperature Sensor "A" Circuit Low Under ...

P0717 Input speed sensor A

DTC Logic DTC DETECTION LOGIC DTC Trouble diagnosis name DTC detection condition Possible causes P0717 Input/Turbine Speed Sensor "A" Circuit No Signal Under the fo ...
