Adjustment
BALANCING WHEELS (ADHESIVE WEIGHT TYPE)
Preparation Before Adjustment
Remove inner and outer balance weights from the road wheel. Using releasing agent, remove double-faced adhesive tape from the road wheel.
CAUTION:
Wheel Balance Adjustment
to calculate the correct size adhesive weight.
a. Indicated imbalance value × 5/3 (1.67) = balance weight to be installed
Calculation example:
23 g (0.81 oz) × 5/3 (1.67) = 38.33 g (1.35 oz)
40 g (1.41 oz)
balance weight (closer to calculated balance weight value)
NOTE: Note that balance weight value must be closer to the calculated balance weight value.
Example:
37.4
35 g (1.23 oz)
37.5
40 g (1.41 oz)

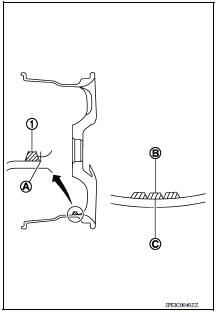

3. Install balance weight in the position shown.
CAUTION:
CAUTION:
- Always use Genuine NISSAN adhesive balance weights.
- Balance weights are non-reusable; always replace with new ones.
- Do not install more than three sheets of balance weight.
CAUTION: Do not install one balance weight sheet on top another.
CAUTION: Do not install more than two balance weights.
Wheel balance | Dynamic (At flange) | Static (At flange) |
Maximum allowable imbalance |
Refer to WT "Road Wheel". |
TIRE ROTATION
Refer to MA"Explanation of General Maintenance".
CAUTION:
Wheel nut tightening torque : 113 N*m (12 kg-m, 83 ft-lb)
