Nissan Versa (N17): Secondary speed sensor

Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Transaxle & transmission (TM) / Secondary speed sensor

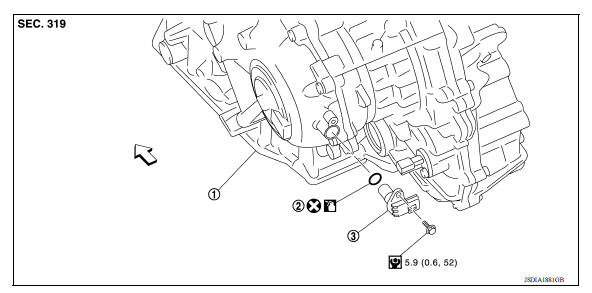

Exploded View

Exploded View

1. Transaxle assembly 2. O-ring 3. Secondary speed sensor Front : Genuine NISSAN CVT Fluid NS-3

Removal and Installation

REMOVAL

  1. Remove the front LH wheel and tire. Refer to WT "Adjustment".
  2. Remove the fender protector (LH). Refer to EXT "Removal and Installation".
  3. Disconnect the harness connector from secondary speed sensor.
  4. Remove the secondary speed sensor.
  5. Remove the O-ring from the secondary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Do not reuse O-ring.
  • Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to TM "Inspection".

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to TM "Adjustment".
