Nissan Versa (N17): Service data and specifications (SDS)

Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Transaxle & transmission (TM) / Service data and specifications (SDS)

General Specification

General Specification

CAUTION:

  • Use only Genuine NISSAN CVT Fluid NS-3. Do not mix with other fluid.
  • Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) warranty

*1: Refer to MA "Fluids and Lubricants".

*2: The CVT fluid capacity is the reference value.

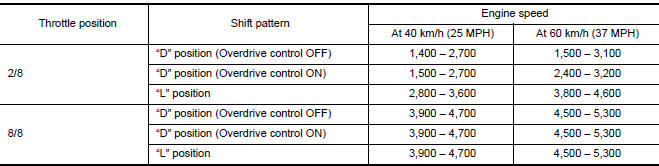

Shift Characteristics

Shift Characteristics

CAUTION: Lock-up is engaged at the vehicle speed of approximately 10 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

Stall Speed

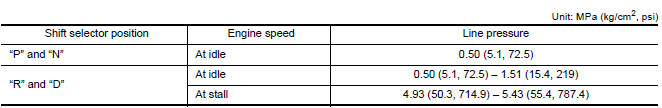

Line Pressure

Line Pressure

Torque Converter

Torque Converter

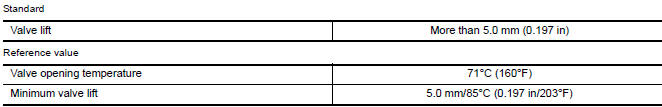

Heater Thermostat

Heater Thermostat

Transmission assembly

Exploded View 1. Transaxle assembly A : For the tightening torque, refer to TM "Removal and Installation". Removal and Installation WARNING: Do not open the radiator cap or dra ...

Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER", us ...
