Nissan Versa (N17): TCM
Exploded View

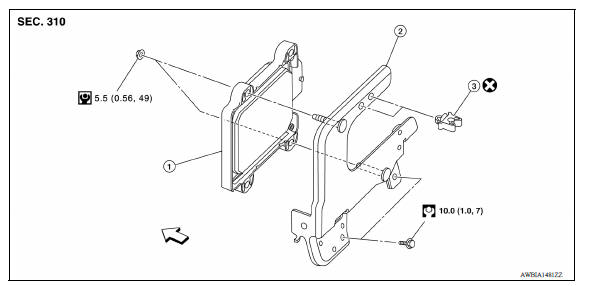

1. TCM 2. Bracket 3. Clips
Front
Removal and Installation
NOTE: When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and then replace the TCM. Refer to TM, "Description".
REMOVAL
- Remove the battery. Refer to PG "Removal and Installation".
- Disconnect the harness connector from the TCM.
- Remove the TCM and bracket as an assembly.
- Remove the TCM from the bracket, if necessary.
INSTALLATION
Installation is in the reverse order of removal.
Adjustment
ADJUSTMENT AFTER INSTALLATION
Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to TM "Description".
Key interlock cable
Exploded View 1. A/T shift selector assembly 2. Key interlock cable A: Key cylinder B: Lock plate C: Clip Removal and Installation CAUTION: Always apply the parking brake before performin ...
Oil pan
Exploded View 1. Transaxle assembly 2. Oil pan gasket 3. Magnet 4. Oil pan 5. Overflow tube 6. Drain plug gasket 7. Drain plug 8. Oil pan fitting bolt Removal and Installation REMOVAL R ...
