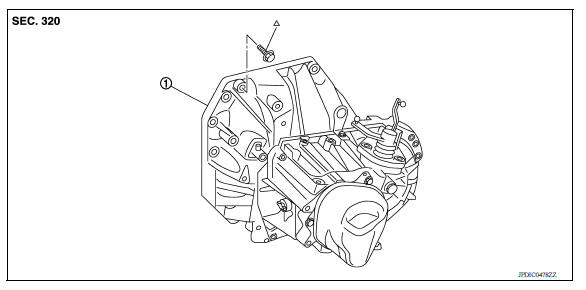

Exploded View
1. Transaxle assembly
: Refer to "INSTALLATION" in TM,
"Removal and Installation" for the locations and tightening torque.
CAUTION: Do not reuse CSC (concentric slave cylinder). CSC slides back to the original position every time transaxle assembly is removed. Dust on the sliding parts may damage the seal of CSC and may cause clutch fluid leakage. Refer to CL, "Removal and Installation".
NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
REMOVAL
: Front
CAUTION:
- Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
- Do not depress clutch pedal during removal procedure.
CAUTION: When setting a suitable jack, be careful that it does not contact the position switch.
20. Remove engine mounting frame support (LH) bolts.
a. Remove bolt (A).
: Front
b. Release clutch damper (1) from bracket. Refer to CL, "Removal and Installation".
c. Remove bolt (B).
d. Remove engine mounting bracket (LH) bolts from vehicle. Refer to EM, "Exploded View".
21. Remove rear engine mounting bracket and rear torque rod.
Refer to EM, "Exploded View".
22. Remove transaxle assembly bolts and nuts.
23. Remove transaxle assembly from the engine.
CAUTION:
- Secure transaxle assembly to a suitable jack.
- The transaxle assembly must not interfere with the wire harnesses and clutch tube.
24. Remove engine mounting bracket (LH) from transaxle assembly. Refer to EM, "Exploded View".
25. Remove CSC. Refer to CL, "Removal and Installation".
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:

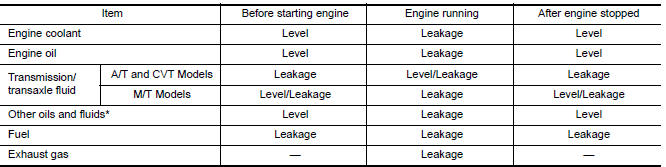

INSPECTION AFTER INSTALLATION
NOTE:If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guidemay generate a pounding noise during and just after engine start. However, this is normal. Noise will stopafter hydraulic pressure rises.
*Power steering fluid, brake fluid, etc.
