Fuel level sensor unit, fuel filter and fuel pump assembly

Exploded View

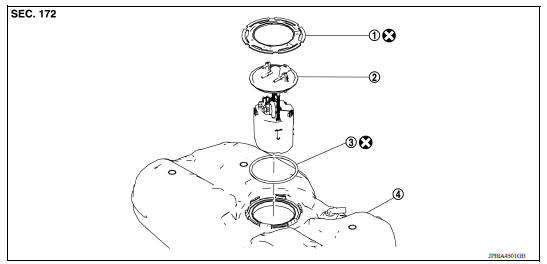

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

1. Lock ring 2. Fuel level sensor unit, fuel filter and fuel pump assembly 3. O-ring 4. Fuel tank

Removal and Installation

WARNING: Be sure to read "General Precautions" before working on the fuel system. Refer to FL, "General Precautions".

REMOVAL

  1. Release the fuel pressure from the fuel lines. Refer to EC, "Work Procedure".
  2. Check fuel level with vehicle on a level surface. If the fuel level is 7/8 of the fuel tank (full or nearly full), draw appropriate amount of fuel from the fuel tank.

Guideline : Draw approximately 10 liters (2-5/8 US gal, 2-1/4 Imp gal) from a full-tank condition.

  • In the event of malfunction in fuel pump, insert a hose measuring 20 mm (0.79 in) in diameter into the filler opening to draw approximately 10 liters (2-5/8 US gal, 2-1/4 Imp gal) fuel.
  1. Open fuel filler lid.
  2. Open fuel filler cap and release the pressure inside fuel tank.
  3. Remove the rear seat cushion. Refer to SE, "Removal and Installation - Seat Cushion Assembly".
  4. Remove the inspection hole cover.
  5. Disconnect the harness connector (B), fuel feed tube (C) and EVAP tube (A).

: Front

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY / REMOVAL

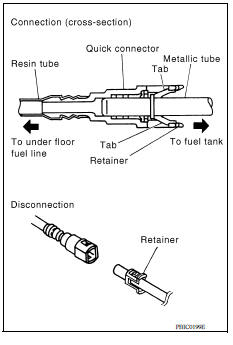

Remove the quick connector as follows:

  • Hold the sides of the connector, push in tabs (B) and pull (A) out the tube.
  • If the connector and the tube are stuck together, push and pull several times until they start to move. Then disconnect them by pulling.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / REMOVAL

CAUTION:

  • The tube can be removed when the tabs are completely depressed. Do not twist it more than necessary.
  • Do not use any tools to remove the quick connector.
  • Keep the resin tube away from heat. Be especially careful when welding near the tube.
  • Prevent acid liquid such as battery electrolyte, etc. from getting on the resin tube.
  • Do not bend or twist the tube during installation and removal.
  • Only when the tube is replaced, remove the remaining retainer on the tube or fuel level sensor, fuel filter, and fuel pump assembly.
  • When the tube or fuel level sensor, fuel filter, and fuel pump assembly is replaced, also replace the retainer with a new one (green colored retainer).
  • To keep the connecting portion clean and to avoid damage and foreign materials, cover them completely with plastic bags (B) or something similar.

(A) : Fuel feed hose

(C) : Fuel tube

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / REMOVAL

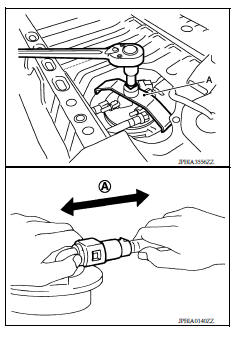

    8.   Remove the lock ring using Tool (A).

Tool number : KV10119900 (J-45722)

NOTE: For reference when installing, put a matching mark on lock ring, fuel pump assembly and fuel tank.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / REMOVAL

    9.   Remove fuel level sensor unit, fuel filter and fuel pump assembly. Remove and discard the O-ring.

CAUTION:

  • Do not bend the float arm during removal.
  • Do not reuse O-ring.

INSPECTION AFTER REMOVAL

Inspect the fuel level sensor, fuel filter, and fuel pump assembly for any defects and foreign materials. Replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

  • Install the fuel level sensor, fuel filter, and fuel pump assembly with the fuel feed tube (C) facing the front of the vehicle as shown. Use a new O-ring.

    CAUTION: Do not reuse O-ring.

: Front

(A) : EVAP tube

(B) : Harness connector

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / INSTALLATION

  • Install the lock ring using Tool (A).

Tool number : KV10119900 (J-45722)

NOTE: For reference when installing, align the matching marks on lock ring, fuel pump assembly and fuel tank.

  • Connect the quick connector as follows:
  • Check the connection for damage or any foreign materials.
  • Align the connector with the tube, then insert the connector straight into the tube until a click is heard.
  • After the tube is connected, make sure the connection is secure by performing the following checks:
  • Pull (A) the tube and the connector to make sure they are securely connected.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / INSTALLATION

  • Visually confirm that the two retainer tabs are connected to the quick connector.

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY  / INSTALLATION
