Restraints » SRS Airbag control system (SRC)
Seat belt warning lamp system

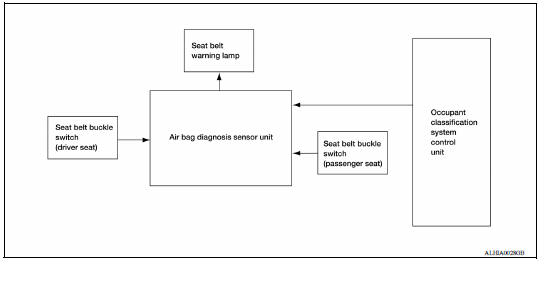

SEAT BELT WARNING LAMP SYSTEM : System Diagram

SEAT BELT WARNING LAMP SYSTEM : System Diagram

SEAT BELT WARNING LAMP SYSTEM : System Description

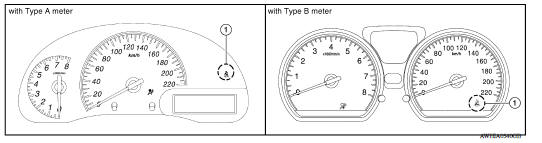

The seat belt warning lamp (1) will remind the driver if the driver or front passenger seat belt should be buckled.

The system works in conjunction with the occupant classification system. Refer to SRC "OCCUPANT CLASSIFICATION SYSTEM : System Description".

SEAT BELT WARNING LAMP SYSTEM : System Description

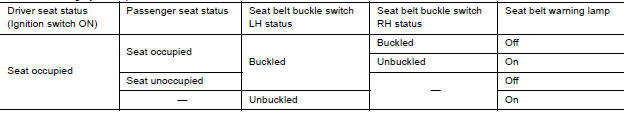

Seat Belt Warning System Operation
