Exploded View

Exploded View

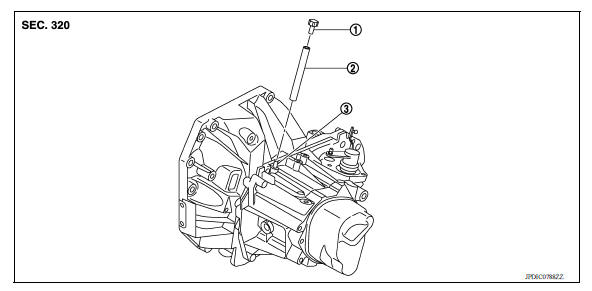

1. Cap 2. Air breather hose 3. 2-way connector

Removal and Installation

REMOVAL

Remove air cleaner case. Refer to EM, "Removal and Installation".
Remove air breather hose from the 2-way connector.

CAUTION: When removing air breather hose, be sure to hold 2-way connector securely.
Remove cap from air breather hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Install air breather hose. Do not bend hose tightly, which may result in pinching or clogging.
Insert the air breather hose to the base of the 2-way connector.
