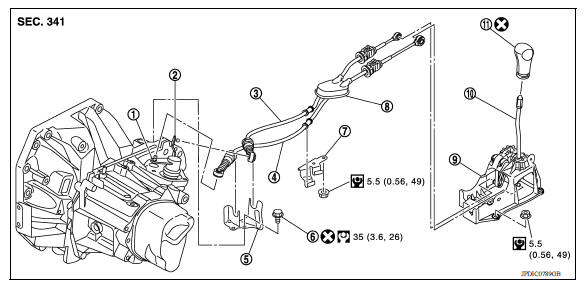

Exploded View

1. Shifter lever A 2. Selector lever 3. Selector cable 4. Shifter cable 5. Cable mounting bracket 6. Tapping bolt 7. Bracket 8. Grommet 9. M/T shift selector assembly 10. Shift selector 11. Shift selector handle
Removal and Installation
REMOVAL

a. While pressing the lock of the selector cable in the direction of the arrows shown, remove the selector cable from the M/T shift selector assembly.
b. While pressing the lock of the shifter cable in the direction of the arrows shown, remove the shifter cable from the M/T shift selector assembly.

INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
CAUTION:
CAUTION: Do not reuse self-tapping bolt.
Inspection
INSPECTION AFTER INSTALLATION
Shift Selector Handle
Check that the shift selector handle is installed in the right position.
Shifter Cable and Selector Cable
M/T Shift Selector Assembly and Shift Selector
