Brakes » Brake control system (BRC)
Component parts

Component Parts Location

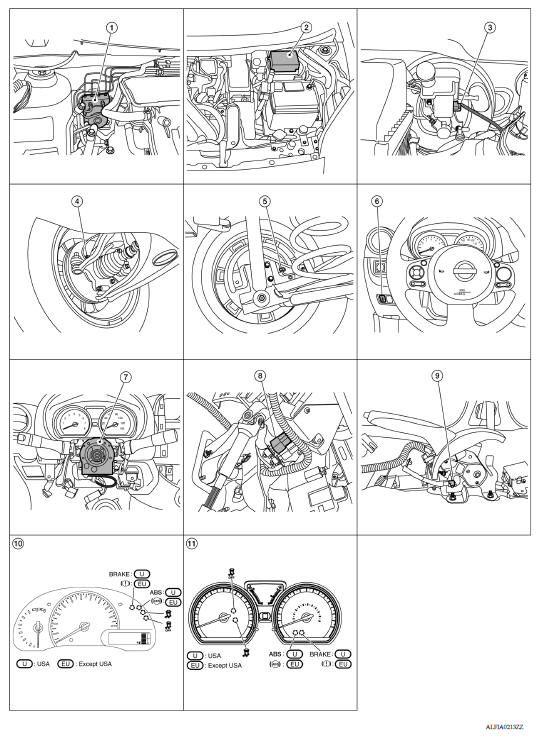

Component Parts Location

1 ABS actuator and electric unit (control unit) 2 IPDM E/R 3 Brake fluid level switch (view with IPDM E/R removed) 4 Front wheel sensor 5 Rear wheel sensor 6 VDC OFF switch 7 Steering angle sensor (view with steering wheel and spiral cable removed) 8 Stop lamp switch 9 Parking brake switch (view with console removed) 10 Combination meter (type A) 11 Combination meter (type B)

Component Description

Component Reference/Function
ABS actuator and electric unit (control unit) BRC "ABS Actuator and Electric Unit (Control Unit)"
Wheel sensor BRC "Wheel Sensor and Sensor Rotor"
Stop lamp switch BRC "Stop Lamp Switch"
Steering angle sensor BRC "Steering Angle Sensor"
VDC OFF switch BRC "VDC OFF Switch"
Brake fluid level switch BRC "Brake Fluid Level Switch"
Parking brake switch BRC "Parking Brake Switch"
ABS warning lamp BRC "VDC/TCS/ABS : System Description"
Brake warning lamp
VDC OFF indicator lamp
SLIP indicator lamp
ECM Transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

- Accelerator pedal position signal

- Engine speed signal

- Target throttle position signal

TCM Transmits the current gear position signal to ABS actuator and electric unit (control unit) via CAN communication.
