Nissan Versa (N17): CVT Control system
Symptom Table
The diagnosis item number indicates the order of check. Start checking in the order from 1.

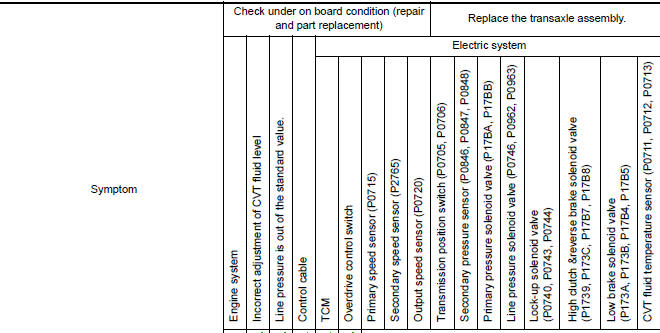

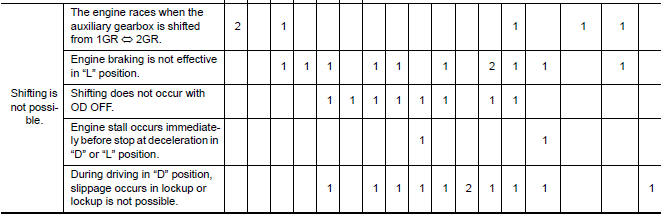

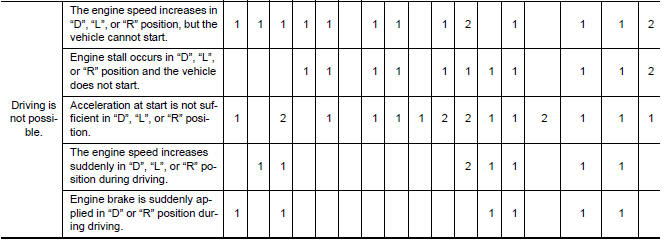

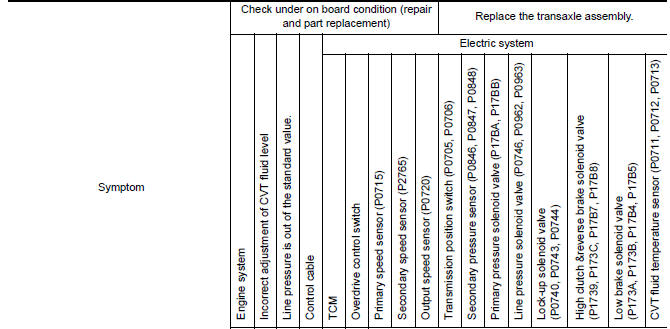

Symptom diagnosis chart 1-1

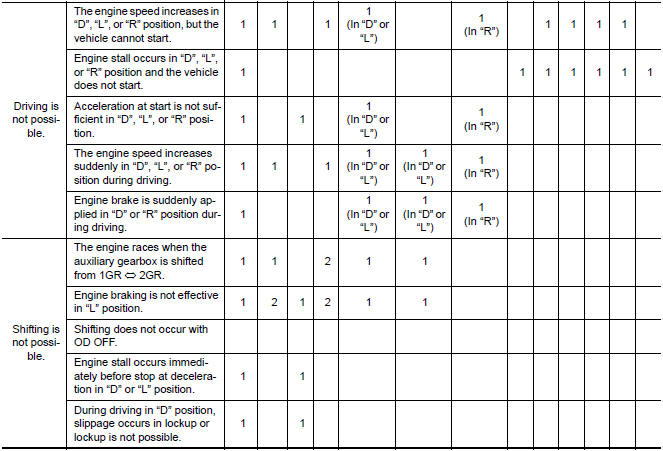

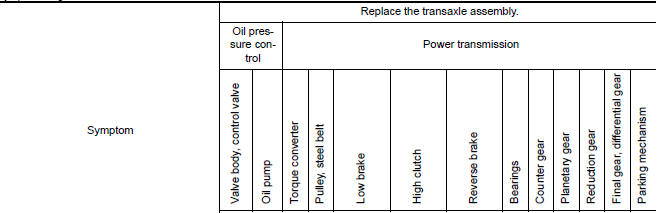

Symptom diagnosis chart 1-2

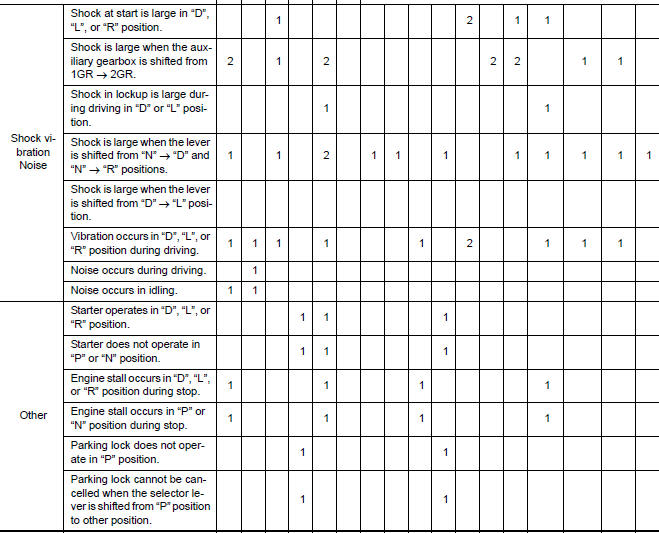

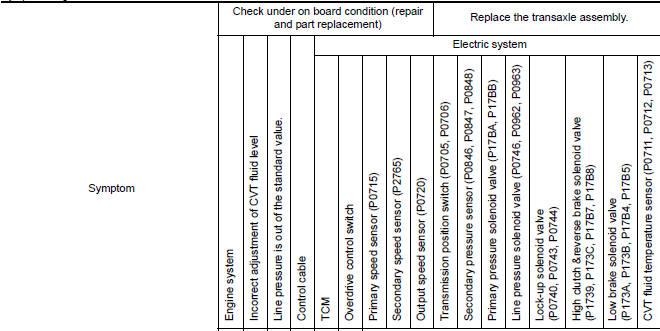

Symptom diagnosis chart 2-1

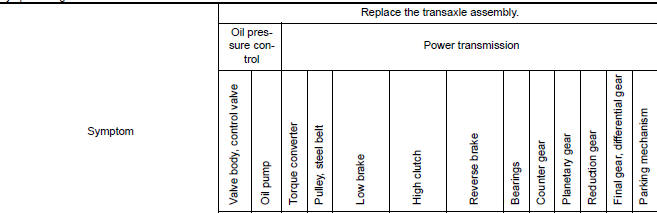

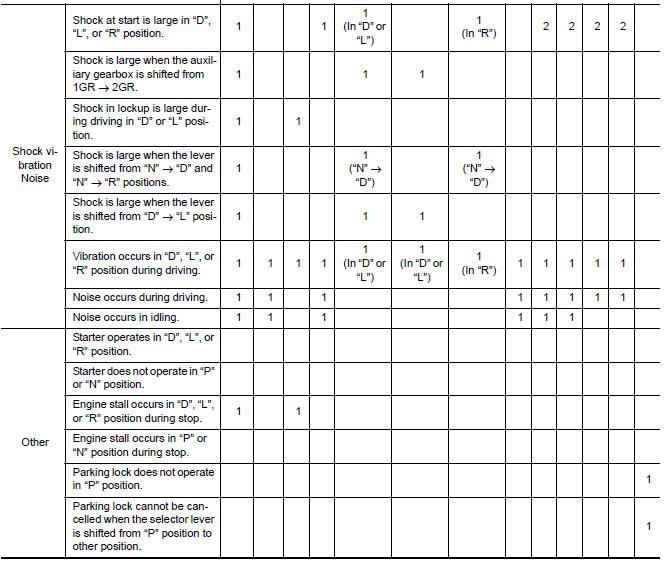

Symptom diagnosis chart 2-2
PERIODIC MAINTENANCE
Shift lock system
Component Function Check 1.CHECK SHIFT LOCK OPERATION (BRAKE PEDAL RELEASED) Ignition switch ON. Attempt to shift selector lever to any position other than "P" position with brake pedal rele ...
CVT Fluid
Inspection FLUID LEAKAGE Check transaxle surrounding area (oil seal and plug etc.)for fluid leakage. If anything is found, repair or replace damaged parts and adjust CVT fluid level. Refer ...
