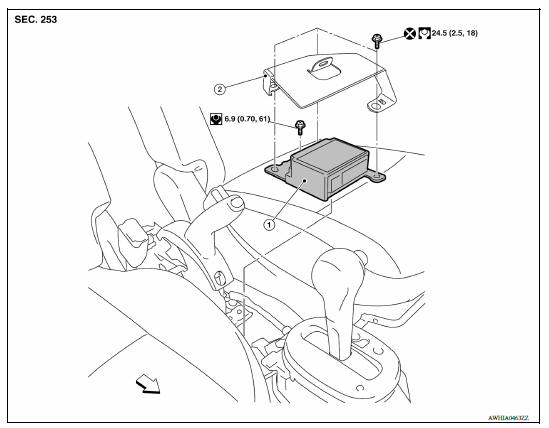

Removal and Installation
1. Diagnosis sensor unit 2. Diagnosis sensor unit harness bracket
Front
REMOVAL
WARNING: When replacing the air bag diagnosis sensor unit, always check with the parts department for he latest parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags and seat belt pre-tensioner in a collision resulting in serious personal injury or death.
CAUTION:
Front
NOTE: Shown with diagnosis sensor unit harness bracket removed for clarity.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be careful not to damage the diagnosis sensor unit harness.
After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function and delete the memory by CONSULT.
If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions.
Refer to SRC "SRS Operation Check".
After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discriminated number (identification number) or part number of the new replacement air bag diagnosis sensor unit matches the ECU discriminated number (identification number) or part number of the replaced (old) air bag diagnosis sensor unit.
NOTE: If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify that the correct air bag diagnosis sensor unit was installed.
SEAT BELT PRE-TENSIONER
Removal and Installation
For removal and installation procedures, refer to SB "SEAT BELT RETRACTOR : Removal and Installation".
OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT
Removal and Installation
The occupant classification system control unit, system wiring harness, and system sensors are an integral part of the front passenger seat, and are replaced with the seat assembly. Refer to SE "DRIVER SIDE : Removal and Installation".
