CONSULT Function
FUNCTION
CONSULT can display each diagnostic item using the diagnostic test modes
shown following.
*: The following diagnosis information is erased by erasing.
ECU IDENTIFICATION
Displays the part number stored in the control unit.
SELF-DIAG RESULTS MODE
Refer to STC "DTC Index".
When "CRNT" is displayed on self-diagnosis result.
When "PAST" is displayed on self-diagnosis result.

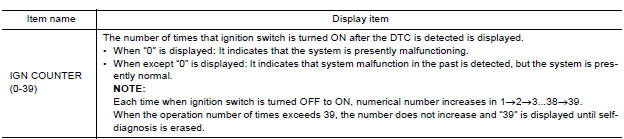

FREEZE FRAME DATA (FFD)
The following vehicle status is recorded when DTC is detected and is
displayed on CONSULT.

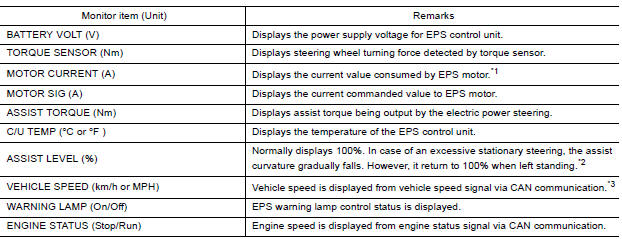

DATA MONITOR MODE
*1: Almost in accordance with the value of "MOTOR SIG". It is not a malfunction though these values are not accorded when steering quickly.
*2: Normally displays 100%. In case of an excessive stationary steering, the assist curvature gradually falls.
However, it returns to 100% when left standing.
*3: It is not a malfunction, though it might not be corresponding just after ignition switch in turned ON.
ECU DIAGNOSIS INFORMATION
EPS SYSTEM : System Description EPS control unit performs an arithmetical operation on data, such as steering wheel turning force (sensor signal) from the torque sensor, vehicle speed signal, ...
Reference Value VALUES ON THE DIAGNOSIS TOOL CAUTION: The output signal indicates the EPS control unit calculation data. The normal values will be displayed even in the event that the output cir ...
Fluid cooler tube
Exploded View
1. Fluid cooler tube A 2. Copper sealing washer 3. Fluid cooler tube B
4. Bolt 5. Transaxle assembly
Removal and Installation
WARNING:
Do not open the radiator cap or drain plug when the engine is hot.
There is a danger that hot liquid
may spray out, causing serious in ...
Road wheel
Inspection
ALUMINUM WHEEL
Check tires for wear and improper inflation.
Check wheels for deformation, cracks and other damage. If deformed,
remove wheel and check wheel
runout.
a. Remove tire from aluminum wheel and mount wheel on a balancer machine.
b. Set dial indicator as shown.
c ...
