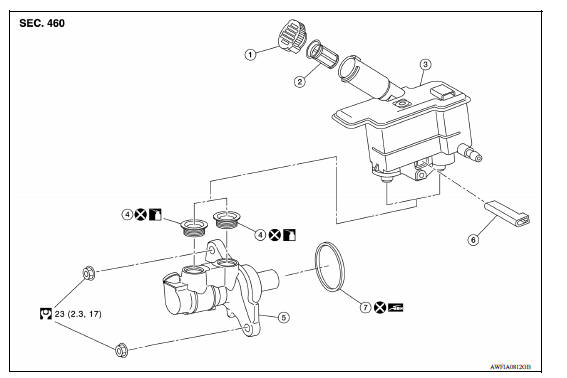

Exploded View
1. Reservoir cap 2. Brake fluid strainer 3. Reservoir tank
4. Grommet 5. Cylinder body 6. Brake fluid level switch
7. O-ring Apply brake fluid
PBC (Poly Butyl Cuprysil) grease or
silicone-based grease
CAUTION:
NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
REMOVAL
CAUTION: Do not scratch the flare nut and the brake tube.
CAUTION:
- Do not deform or bend the brake pipes.
- Do not depress the brake pedal after the master cylinder assembly is removed.
- The piston of the master cylinder assembly is exposed. Do not damage it when removing the master cylinder.
- The piston may drop off when pulled out strongly. Do not hold the piston. Hold the cylinder body when handling the master cylinder assembly.
8. Remove and discard the O-ring.
INSTALLATION
CAUTION:
Note the following, and install in the reverse order of removal.
Hold the cylinder body when handling the master cylinder assembly.
CAUTION: Do not scratch the flare nut and the brake tube.
DISASSEMBLY
CAUTION:
Remove the reservoir tank and grommet from the cylinder body.
ASSEMBLY
CAUTION:
CAUTION: Do not reuse the grommets.
Inspection
INSPECTION AFTER INSTALLATION
CAUTION: If the fluid leakage is present, retighten to the specified torque. Replace if necessary.
REAR : Exploded View 1. Rear brake pipe assembly (RH) 2. Rear brake pipe assembly (LH) 3. Lock plate 4. Rear brake hose 5. Wheel cylinder brake pipe assembly A. To rear brake hose B. To brak ...
Exploded View 1. Master cylinder assembly 2. Check valve 3. Brake booster 4. Lock nut 5. Clevis 6. Gasket ...
U0300 Can communication data
Description
CAN (Controller Area Network) is a serial communication line for real-time
application. It is an on-vehicle multiplex
communication line with high data communication speed and excellent malfunction
detection ability.
Many electronic control units are equipped onto a vehicle, an ...
System (power door lock system)
System Diagram
System Description
DOOR LOCK FUNCTION
The door lock and unlock switch (driver side) is built into power window
main switch.
The door lock and unlock switch (passenger side) is on door trim.
Interlocked with the locking operation of door lock and unlock swit ...
