Exploded View

EVAP CONTROL SYSTEM PRESSURE SENSOR

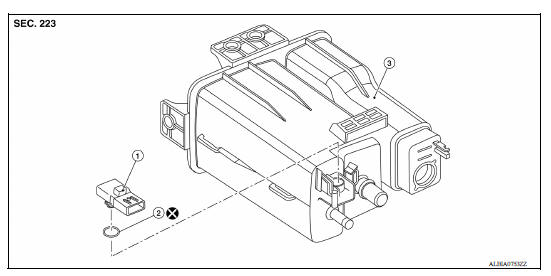

1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister

Removal and Installation

NOTE: The EVAP canister system pressure sensor can be removed without removing the EVAP canister.

REMOVAL

  1. Remove the EVAP canister protector cover.
  2. Disconnect EVAP canister purge hose from EVAP canister.
  3. Disconnect EVAP control system pressure sensor.
  4. Remove EVAP control system pressure sensor and O-ring.

CAUTION: Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Do not reuse O-ring.
