Nissan Versa (N17): Door lock actuator

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / Door lock actuator

Driver side

DRIVER SIDE : Description

Locks/unlocks the door with the signal from BCM.

DRIVER SIDE : Component Function Check

1.CHECK FUNCTION

  1. Use CONSULT to perform Active Test ("DOOR LOCK").
  2. Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.

Is the inspection result normal?

YES >> Door lock actuator is OK.

NO >> Refer to DLK "DRIVER SIDE : Diagnosis Procedure".

DRIVER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "Wiring Diagram".

1.CHECK OUTPUT SIGNAL

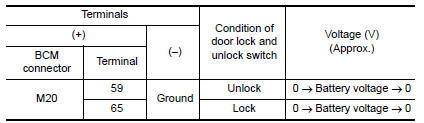

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 3

NO >> GO TO 2

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1. Turn ignition switch OFF.
  2. Disconnect BCM and front door lock actuator driver side connector.
  3. Check continuity between BCM connector and front door lock actuator driver side connector.
  4. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> Replace front door lock actuator LH.

NO >> Repair or replace harness.

3.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Passenger side

PASSENGER SIDE : Description

Locks/unlocks the door with the signal from BCM.

PASSENGER SIDE : Component Function Check

1.CHECK FUNCTION

  1. Use CONSULT to perform Active Test ("DOOR LOCK").
  2. Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.

Is the inspection result normal?

YES >> Door lock actuator is OK.

NO >> Refer to DLK "PASSENGER SIDE : Diagnosis Procedure".

PASSENGER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR SIGNAL

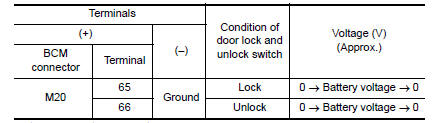

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 3

NO >> GO TO 2

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1. Disconnect BCM and front door lock actuator RH connectors.
  2. Check continuity between BCM connector and front door lock actuator RH.
  3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> Replace front door lock actuator RH.

NO >> Repair or replace harness.

3.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Rear LH

REAR LH : Description

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

1.CHECK FUNCTION

  1. Use CONSULT to perform Active Test ("DOOR LOCK").
  2. Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.

Is the inspection result normal?

YES >> Door lock actuator is OK.

NO >> Refer to DLK "REAR LH : Diagnosis Procedure".

REAR LH : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR SIGNAL

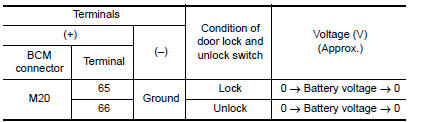

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 3

NO >> GO TO 2

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1. Disconnect BCM and rear door lock actuator LH connectors.
  2. Check continuity between BCM connector and rear door lock actuator LH connectors.
  3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> Replace rear door lock actuator LH.

NO >> Repair or replace harness.

3.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Rear  RH

REAR RH : Description

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

1.CHECK FUNCTION

  1. Use CONSULT to perform Active Test ("DOOR LOCK").
  2. Touch "ALL LOCK" or "ALL UNLOCK" to check that it works normally.

Is the inspection result normal?

YES >> Door lock actuator is OK.

NO >> Refer to DLK "REAR RH : Diagnosis Procedure".

REAR RH : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR SIGNAL

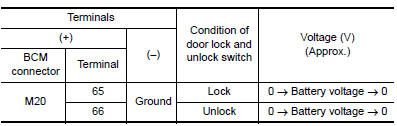

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES >> GO TO 3

NO >> GO TO 2

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1. Disconnect BCM and rear door lock actuator RH connectors.
  2. Check continuity between BCM connector and rear door lock actuator RH connectors.
  3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES >> Replace rear door lock actuator RH.

NO >> Repair or replace harness.

3.CHECK INTERMITTENT INCIDENT

Refer to GI "Intermittent Incident".

>> Inspection End.

Key switch (BCM Input)

Diagnosis Procedure Regarding Wiring Diagram information, refer to DLK "Wiring Diagram".        1.CHECK KEY SWITCH INPUT SIGNAL With CONSULT Check k ...

Trunk lid opener actuator

Component Function Check 1.CHECK FUNCTION Press the trunk release button on the keyfob and check that the trunk lid opens. Is the inspection result normal? YES >> Inspection End. NO > ...
