NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

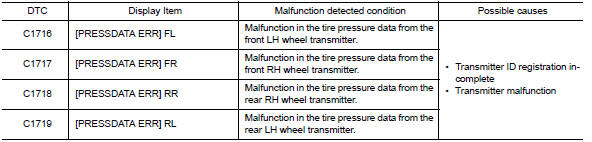

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
Is DTC "C1716", "C1717", "C1718", or "C1719" detected?
YES >> Proceed to WT "Diagnosis Procedure".
NO >> Inspection End.
NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.
1.CHECK TIRE PRESSURE
Check the air pressure of all wheels. Refer to pressure observed during "DTC CONFIRMATION PROCEDURE".
Is the inspection result normal?
YES >> Replace the DTC-detected malfunctioning transmitter. Refer to WT "Removal and Installation".
NO >> GO TO 2.
2.CHECK TIRE PRESSURE SIGNAL
With CONSULT
Are tire pressures displayed as 438.6 kPa (4.47 kg/cm2, 63.6 psi)?
YES >> Replace transmitter for the tire that displayed pressure as 438.6 kPa (4.47 kg/cm2, 63.6 psi).
Refer to WT "Removal and Installation".
NO >> Perform "DTC CONFIRMATION PROCEDURE" again. Refer to WT "DTC Logic".
