Nissan Versa (N17): EVAP canister filter

Nissan Versa 2nd generation (N17) Service Manual / Engine / Fuel system (FL) / EVAP canister filter

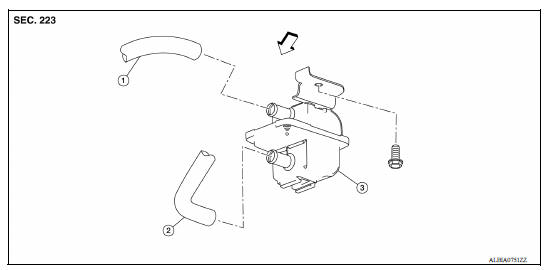

Exploded View

EVAP CANISTER FILTER

1. EVAP canister vent control valve hose 2. Canister drain hose 3. EVAP canister filter

Front

Removal and Installation

REMOVAL

  1. Remove the EVAP canister protector cover.
  2. Disconnect EVAP canister vent control valve hose from EVAP canister filter.
  3. Disconnect canister drain hose from EVAP canister filter.
  4. Remove the bolt and the EVAP canister filter.

INSTALLATION

Installation is in the reverse order of removal.

EVAP canister

Exploded View 1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister 4. Hose clamp 5. EVAP canister purge hose 6. EVAP vent line 7. O-ring 8. EVAP canister vent control valve 9. EVA ...

EVAP canister vent control valve

Exploded View 1. EVAP canister 2. O-ring 3. EVAP canister vent control valve 4. EVAP canister vent control valve hose Removal and Installation NOTE: The EVAP canister vent control valve can ...
