Description
The vehicle speed signal is sent to the combination meter from the "ABS actuator and electric unit (control unit)" by CAN communication line. The combination meter then sends a signal to the ECM by CAN communication line.
DTC DETECTION LOGIC
NOTE:
DTC No. | Trouble diagnosis name | DTC detecting condition | Possible cause |
P0500 | Vehicle speed sensor | The almost 0 km/h (0 MPH) of vehicle speed signal is sent to ECM even when vehicle is being driven. |
|
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Do you have CONSULT?
YES >> GO TO 2.
NO >> GO TO 5.
2.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
>> GO TO 3.
3.CHECK VEHICLE SPEED SENSOR FUNCTION
NOTE: This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.
With CONSULT
Is the inspection result normal?
YES >> GO TO 4.
NO >> Go to EC, "Diagnosis Procedure".

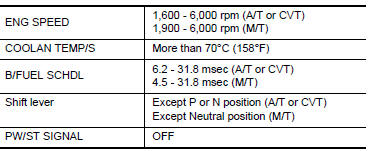

4.PERFORM DTC CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC, "Diagnosis Procedure".
NO >> INSPECTION END
5.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC, "Component Function Check".
Use component function check to check the overall function of the vehicle speed signal circuit. During this check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC, "Diagnosis Procedure".
1.PERFORM COMPONENT FUNCTION CHECK
With GST
The vehicle speed signal on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC, "Diagnosis Procedure".
Diagnosis Procedure
1.CHECK DTC WITH ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Check DTC with ABS actuator and electric unit (control unit). Refer to BRC, "DTC Index".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace.
2.CHECK DTC WITH COMBINATION METER
Check DTC with combination meter. Refer to MWI, "DTC Index" (TYPE A) or MWI, "DTC Index" (TYPE B).
>> INSPECTION END
