Exploded View

Exploded View

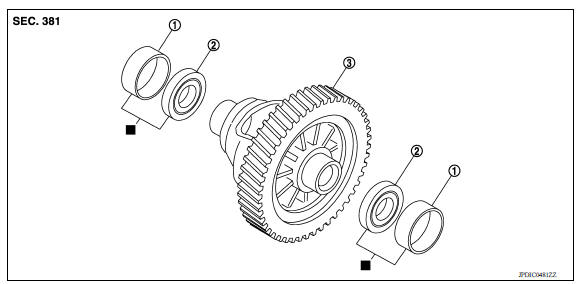

1. Differential side bearing outer race 2. Differential side bearing 3. Final drive : Replace the parts as a set.

Disassembly

Remove differential side bearings, using Tool (A) and suitable tool.

Tool number : ST33052000 ( - )

Disassembly

Assembly

Install differential side bearings, using Tool (A).

CAUTION: Replace differential side bearing outer race and differential side bearing as a set.

Tool number : KV40104920 ( - )

Assembly

Inspection

INSPECTION AFTER DISASSEMBLY

Gear and Final Drive

Check the sliding surfaces for wear, crack, or damage. Replace if necessary.

Bearing

Check bearing for damage and rough rotation. Replace if necessary.

Inspection

Service data and specifications (SDS)

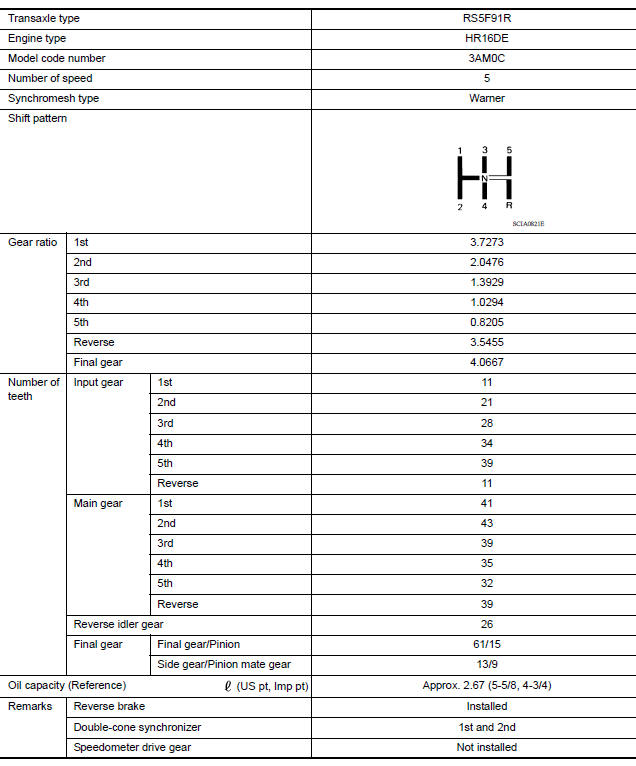

General Specifications

Mainshaft and gear

Exploded View 1. Mainshaft front bearing 2. Mainshaft 3. 1st main gear 4. 1st inner baulk ring 5. 1st synchronizer cone 6. 1st outer baulk ring 7. 1st-2nd synchronizer hub 8. 1st-2nd coupling ...
