FRONT WHEEL SENSOR : Exploded View
1. Front wheel sensor (LH) 2. Front wheel sensor harness connector (LH) Front
FRONT WHEEL SENSOR : Removal and Installation
CAUTION:
REMOVAL
INSTALLATION
Installation is in the reverse order of the removal.
CAUTION: Do not twist front wheel sensor harness when installing front wheel sensor. Check that grommet (2) is fully inserted to bracket (1). Check that front wheel sensor harness is not twisted after installation.
REAR WHEEL SENSOR : Exploded View

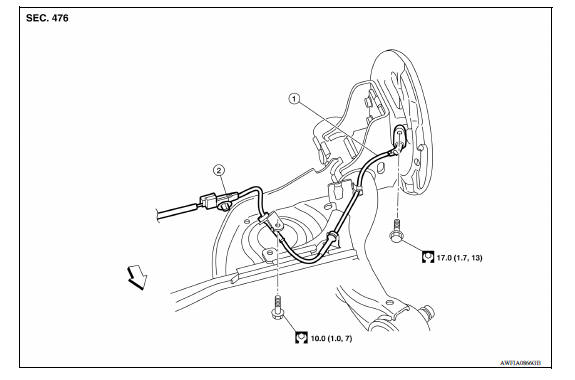

1. Rear wheel sensor (LH) 2. Rear wheel sensor harness connector (LH) Front
REAR WHEEL SENSOR : Removal and Installation
CAUTION:
REMOVAL
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: Do not twist rear wheel sensor harness when installing rear wheel sensor. Check that grommet (2) is fully inserted to bracket (1). Check that rear wheel sensor harness is not twisted after installation.
Diagnosis Procedure 1.SYMPTOM CHECK Check if the vehicle jerks during VDC/TCS/ABS control. Is the inspection result normal? YES >> Inspection End. NO >> GO TO 2 2.CHECK SELF DIAGNO ...
FRONT SENSOR ROTOR FRONT SENSOR ROTOR : Removal and Installation REMOVAL The front wheel sensor rotor is an integral part of the wheel hub and bearing assembly and can not be replaced individual ...
