Exploded View

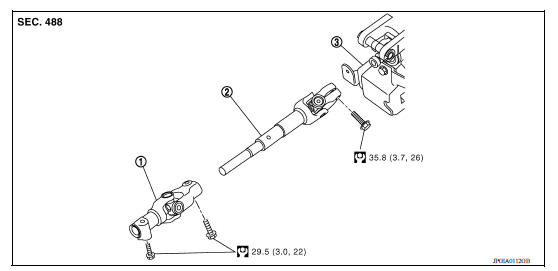

1. Lower joint 2. Intermediate shaft 3. Steering column assembly
REMOVAL
CAUTION: Spiral cable may be cut if steering wheel turns while separating steering column assembly and steering gear assembly. Be sure to secure steering wheel using string to avoid turning.
CAUTION:
Replace the lower joint with a new one if damaged.
CAUTION:
INSTALLATION
CAUTION: Spiral cable may be cut if steering wheel turns while separating steering column assembly and steering gear assembly. Be sure to secure steering wheel using string to avoid turning.
Installation is in the reverse order of removal.
CAUTION: If a guide protrusion is not included, align with the matching mark placed at the removal step.
INSPECTION AFTER REMOVAL
INSPECTION AFTER INSTALLATION
- Steering wheel play: Refer to ST "Inspection".
- Neutral position steering wheel, steering wheel turning force, and front wheel turning angle: Refer to ST "Inspection".
Exploded View 1. Steering column assembly 2. Clamp ...
Exploded View 1. Guide 2. Cowl seal 3. Steering gear assembly 4. Front suspension member Front Removal and Installation NOTE: When removing components such as hoses, tubes/lines, etc., cap o ...
Fuel injector and fuel tube
Exploded View
1. Stud bolt 2. Oring (green) 3. Fuel injector (front) 4. Clip 5. Fuel
injector (rear) 6. Oring (black) 7. Fuel tube protector 8. Fuel tube 9. Clamp
10. Quick connector cap (engine side) 11. Fuel feed hose 12. Quick connector cap
(floor pipingside) 13. Fuel connector protect ...
Lock-up control
LOCK-UP CONTROL : System Description
SYSTEM DIAGRAM
DESCRIPTION
Controls for improvement of the transmission efficiency by engaging the
torque converter clutch in the
torque converter and eliminating slip of the converter. Achieves comfortable
driving with slip control of the
t ...
