Exploded View
1. Joint cover 2. Steering gear assembly 3. Inner socket 4. Large clamp 5. Boot 6. Small boot clamp 7. Outer socket
DISASSEMBLY
ASSEMBLY
CAUTION: Do not reuse boot clamps.
Tool number : KV40107300 ( - )
Inner socket length (L) : Refer to ST "Ball Joint Swing Force".
CAUTION: Adjust toe-in after this procedure. The length achieved after toe-in adjustment is not necessarily the above value.
INSPECTION AFTER DISASSEMBLY
Boot
Steering gear Assembly
Outer Socket and Inner Socket
BALL JOINT SWINGING FORCE
Tool number : - (J-44372)
Measuring point of outer socket (1) : Ball stud upper side (A)
Measuring point of inner socket (2) : Point (B)
Swinging force : Refer to ST "Ball Joint Swing Force".
BALL JOINT AXIAL END PLAY
Axial end play : Refer to ST "Ball Joint Axial End Play".
SERVICE DATA AND SPECIFICATIONS (SDS)
General Specifications
Steering Wheel Axial End Play and Play
Steering Wheel Turning Force

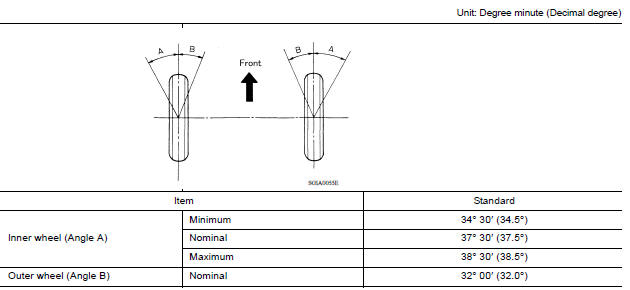

Steering Angle
Steering Column Operating Range
*: For measuring position, refer to ST "Inspection".

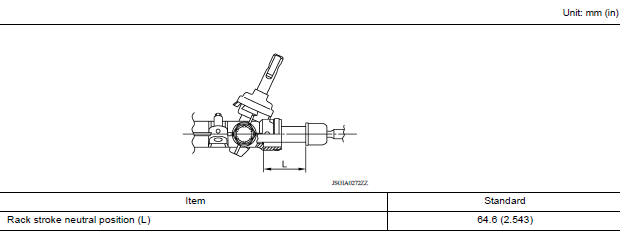

Rack Stroke
Ball Joint Swing Force
*: For measuring position, refer to ST "Inspection".
Ball Joint Axial End Play
Inner Socket Length
