Nissan Versa (N17): Intelligent key system

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / Intelligent key system

INTELLIGENT KEY SYSTEM : System Description

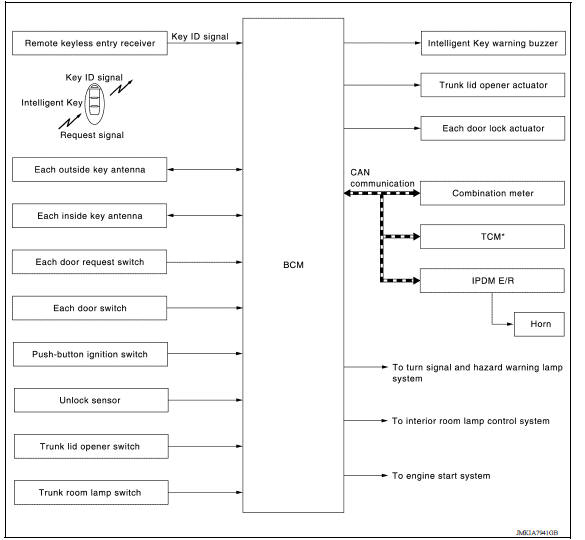

SYSTEM DIAGRAM

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

  • The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/ unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (BCM).

NOTE: The driver should always carry the Intelligent Key

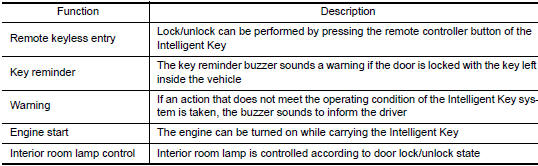

  • The settings for each function can be changed with CONSULT.
  • If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be registered.
  • It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.
