KEY REMINDER FUNCTION : System Description

System Diagram

System Diagram

BASIC OPERATION

Key reminder is the function that prevents the key from being left in the vehicle.

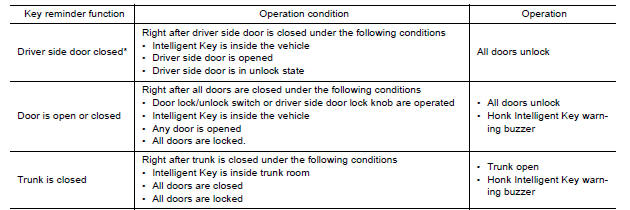

Key reminder has the following 3 functions.

*:When closing the door if something comes into contact with the door lock switch it might activate the door locks accidentally, but the unlock operation will override this.

NOTE: The above function operates when the Intelligent Key is inside the vehicle. However, there may be times when the Intelligent Key cannot be detected, and this function does not operate when the Intelligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket for the open door.
