Diagnosis Procedure
NOTE: If low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds, wake-up operation for all transmitters is not complete.
Carry out transmitter wake-up operation. Refer to WT "Work Procedure".
1.CHECK BCM CONNECTOR
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS "Removal and Installation" or BCS "Removal and Installation".
NO >> Repair or replace damaged parts.
ID REGISTRATION CANNOT BE COMPLETED
Diagnosis Procedure
1.PERFORM ID REGISTRATION OF ALL TRANSMITTERS
Carry out ID registration of all transmitters. Refer to WT "Work Procedure".
Can ID registration of all transmitters be completed?
YES >> Inspection End.
NO >> Refer to BCS "AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE MONITOR)" or BCS "AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE MONITOR)".
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

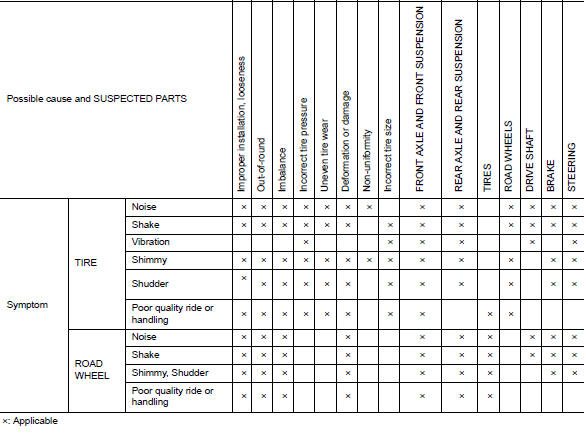

NVH Troubleshooting Chart
Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.
PERIODIC MAINTENANCE
Diagnosis Procedure 1.INSPECT BCM CONNECTOR Turn ignition switch OFF. Disconnect BCM connectors. Check terminals for damage or loose connections. Is the inspection result normal? YES > ...
Inspection ALUMINUM WHEEL Check tires for wear and improper inflation. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout. a. Remove ...
Preparation
Special Service Tool
The actual shape of Kent-Moore tools may differ from those of special service
tools illustrated here.
HFC-134a (R-134a) Service Tool and Equipment
Do not mix HFC-134a (R-134a) refrigerant and/or its specified oil with CFC-12
(R-12) refrigerant and/or its oil.
Separ ...
Hood lock secondary control
HOOD LOCK SECONDARY CONTROL : Removal
and Installation
REMOVAL
Remove radiator upper seal clips and then remove upper clip from
radiator side seal (RH). Refer to DLK "Exploded View".
Remove hood lock secondary control nuts and hood lock secondary control.
INSTALLATION
Instal ...
