SHIFT LOCK SYSTEM : Component Parts Location

SHIFT LOCK SYSTEM : Component Parts Location

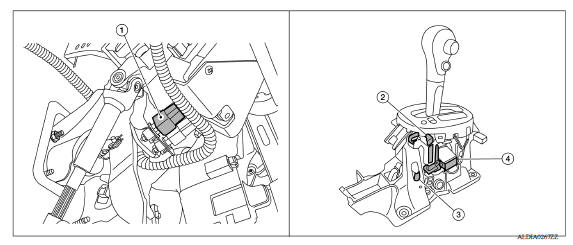

1. Stop lamp switch 2. Shift lock release lever 3. Park position switch 4. Shift lock solenoid

Component	Function
Stop lamp switch	Stop lamp switch turns ON when brake pedal is depressed
Shift lock release lever	Manually releases the shift lock
Park position switch	Detects that the selector lever is in "P" position.
Shift lock solenoid	Operates according to the signal from the stop lamp switch and moves the lock lever.
