Nissan Versa (N17): TCM

Nissan Versa 2nd generation (N17) Service Manual / Transmission & driveline / Transaxle & transmission (TM) / TCM

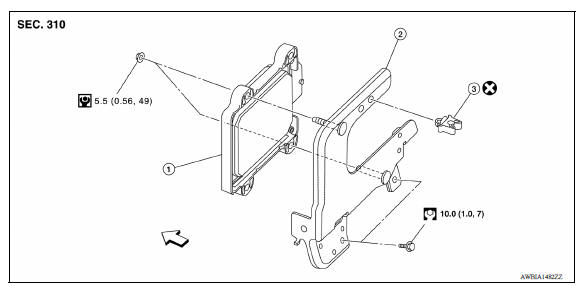

Exploded View

Exploded View

1. TCM 2. Bracket 3. Clip Front

Removal and Installation

CAUTION: When replacing TCM, note the "CVTF DETERIORATION DATE" value displayed on CONSULT "CONFORM CVTF DETERIORTN" in MAINTENANCE BOOKLET, before starting the operation.

NOTE: When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and then replace the TCM. Refer to TM "Description".

REMOVAL

  1. Remove the battery. Refer to PG "Removal and Installation".
  2. Disconnect the harness connector from the TCM.
  3. Remove the TCM and bracket as an assembly.
  4. Remove the TCM from the bracket, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

ADJUSTMENT AFTER INSTALLATION

Perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to TM "Description".
