Exploded View

Exploded View

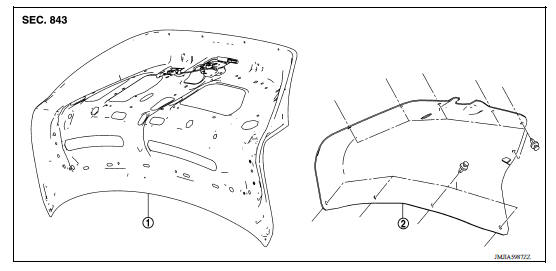

1. Trunk lid assembly 2. Trunk lid finisher

Removal and Installation

REMOVAL

  1. Fully open trunk lid.
  2. Remove emergency release handle. Refer to DLK "EMERGENCY LEVER : Removal and Installation".
  3. Disconnect the harness connector (A) from the trunk lid lock assembly.
  4. Remove trunk lid finisher clips (B) using a suitable tool and trunk lid finisher.

REMOVAL

INSTALLATION

Installation is in the reverse order of removal.

Trunk rear plate

TRUNK REAR PLATE : Removal and Installation REMOVAL Fully open trunk lid. Remove trunk floor carpet. Remove trunk rear plate clips (A).     4.   Release trunk ...
