Nissan Versa

 Sedan Service Manual

Body exterior, doors, roof & vehicle security » Door & lock (DLK)
Trunk open function

TRUNK OPEN FUNCTION : System Description

System Diagram

TRUNK LID OPENER OPERATION

• When the BCM detects that trunk lid opener switch is pressed, it starts the outside key antenna (rear bumper) and inside key antenna and transmits the request signal to the Intelligent Key. Then, checks that the Intelligent Key is near the trunk lid.
• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
• BCM receives the key ID signal and compares it with the registered key ID.

OPERATION CONDITION

If the following conditions are satisfied, the trunk lid can be opened.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of trunk lid open function is in the range of approximately 80 cm (31.50 in) surrounding trunk lid opener switch (1). However, this operating range depends on the ambient conditions.

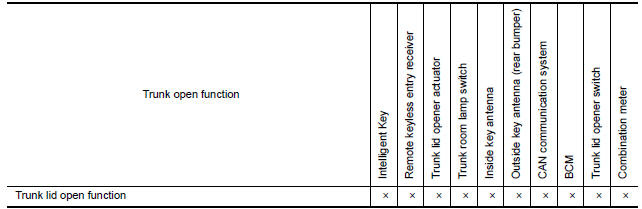

LIST OF OPERATION RELATED PARTS

Parts marked with × are the parts related to operation.
