VEHICLE INFORMATION
BODY EXTERIOR PAINT COLOR

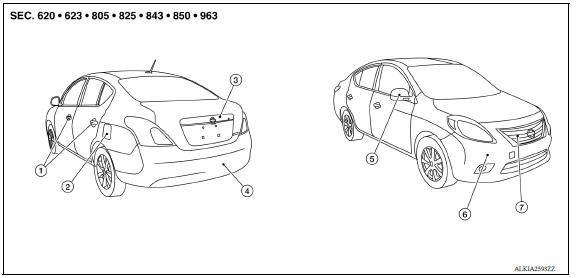

Body Exterior Paint Color

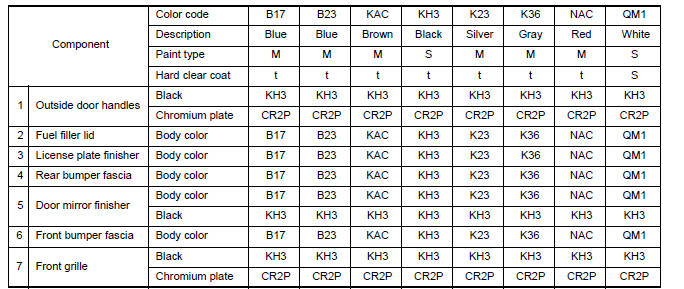

M = Metallic, S = Solid, 2S = Solid and Clear, 2P = 2-stage Pearl, 3P = 3-Stage pearl, PM = Pearl metallic, t = Primerless Diamond Clear coat, Black is solvent based, all others are water based.
Ignition coil, spark plug and rocker cover
Exploded View
1. Ignition coil 2. Spark plug 3. Rocker cover
4. Hose cramp 5. PCV hose 6. PCV valve
7. Oring 8. Gasket 9. Oil filler cap
10. Oring 11. Intake camshaft position sensor 12. Exhaust camshaft position
sensor
13. Clip A. To intake manifold
Removal and Installation
REMOVAL
...
Sensor rotor
FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and Installation
REMOVAL
The front wheel sensor rotor is an integral part of the wheel hub and bearing
assembly and can not be
replaced individually. When replacing the front wheel sensor rotor replace the
hub and bearing assembly.
