Restraints » SRS Airbag control system (SRC)
Diagnosis sensor unit

DTC Index

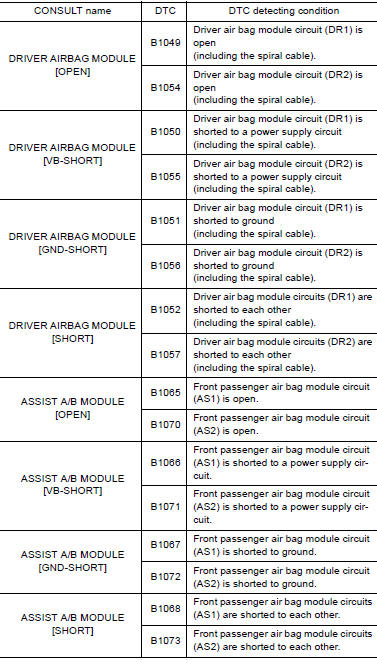

DIAGNOSTIC CODE CHART

NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp or CONSULT each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

DTC Index

DTC Index

DTC Index

Flash Code Index

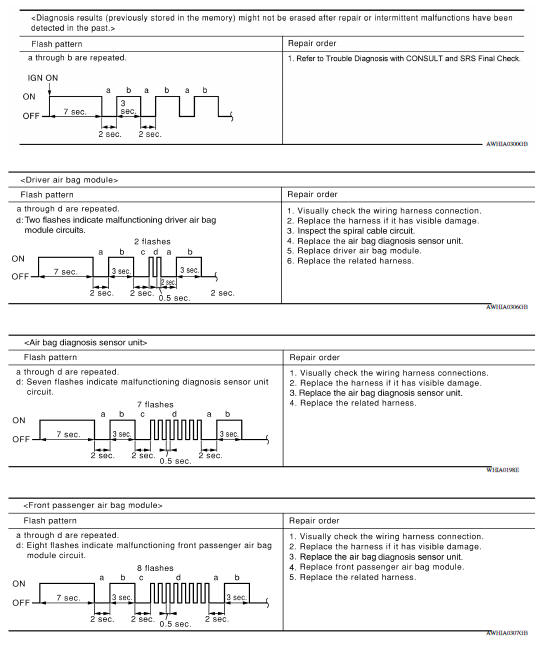

WARNING LAMP FLASH CODE CHART

NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

Flash Code Index

Flash Code Index

Flash Code Index

Flash Code Index

WIRING DIAGRAM

SRS AIR BAG CONTROL SYSTEM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BASIC INSPECTION
