Engine control system

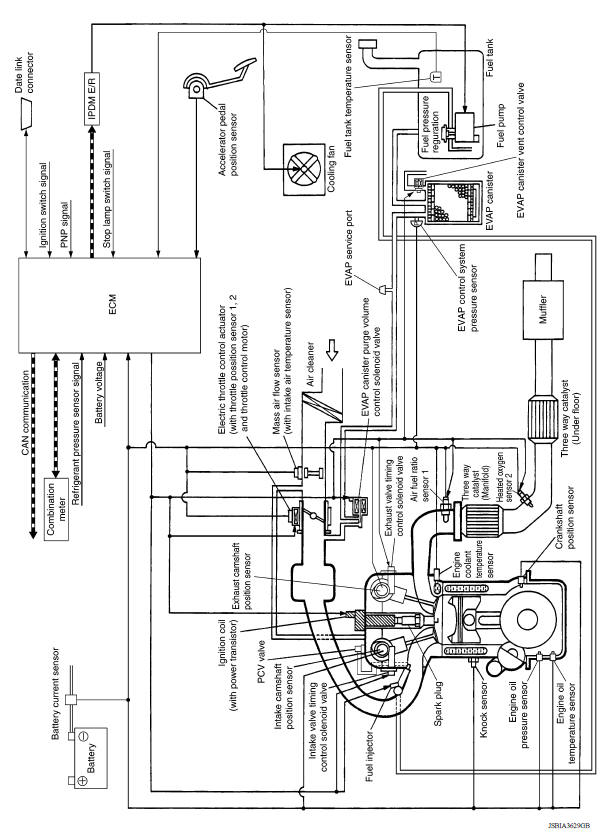

ENGINE CONTROL SYSTEM : System Diagram

ENGINE CONTROL SYSTEM : System Diagram

NOTE:

Battery current sensor is used in CVT models.

ENGINE CONTROL SYSTEM : System Description

ECM performs various controls such as fuel injection control and ignition timing control.

ENGINE CONTROL SYSTEM : Fail Safe

NON DTC RELATED ITEM

Detected items Engine operating condition in failsafe mode Remarks
Malfunction indicator lamp circuit Engine speed will not rise more than 2,500 rpm due to the fuel cut When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is malfunction on engine control system.

Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means of operating fail safe function.

The fail safe function also operates when above diagnoses except MIL circuit are detected and demands the driver to repair the malfunction.

DTC RELATED ITEM

DTC No. Detected items Engine operating condition in fail safe mode
P0011 Intake valve timing control The signal is not energized to the intake valve timing control solenoid valve and the valve control does not function.
P0014 Exhaust valve timing control The signal is not energized to the exhaust valve timing control solenoid valve and the valve control does not function.
P0101 P0102 P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117 P0118 Engine coolant temperature sensor circuit Engine coolant temperature will be determined by ECM based on the following conditions.

CONSULT displays the engine coolant temperature decided by ECM.

Condition Engine coolant temperature decided (CONSULT display)
Just as ignition switch is turned ON or START 40C (104F)
Approx. 4 minutes or more after engine starting 80C (176F)
Except as shown above 40 80C (104 176F) (Depends on the time)

When the fail safe system for engine coolant temperature sensor is activated, the cooling fan operates while engine is running.

P0122 P0123 P0222 P0223 P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10 degrees.

The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.

So, the acceleration will be poor.

P0196 P0197 P0198 Engine oil temperature sensor Exhaust valve timing control does not function.
P0500 Vehicle speed sensor The cooling fan operates (Highest) while engine is running.
P0524 Engine oil pressure
  • ECM illuminates oil pressure warning lamp on the combination meter.
  • Engine speed will not rise more than 4,000 rpm due to the fuel cut.
  • Failsafe is canceled when ignition switch OFF → ON.
P0605 ECM (When ECM calculation function is malfunctioning:) ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switch ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.

Therefore, acceleration will be poor.

Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2100 P2103 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control function ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric throttle control actuator (When electric throttle control actuator does not function properly due to the return spring malfunction:) ECM controls the electric throttle actuator by regulating the throttle opening around the idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail safe mode is not in specified range:) ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
(When ECM detects the throttle valve is stuck open:) While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.

The engine can restart in the Neutral position, and engine speed will not exceed 1,000 rpm or more.

P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10 degrees.

The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.

So, the acceleration will be poor.
