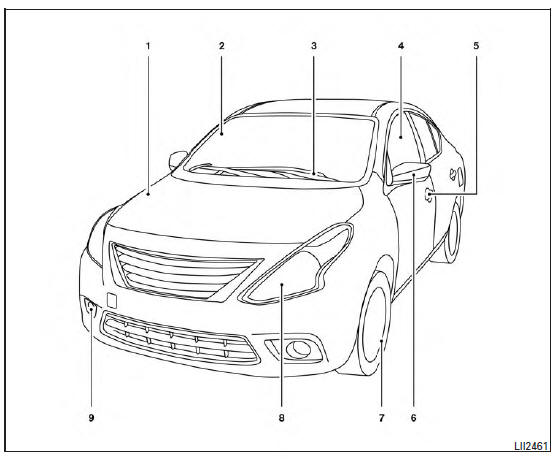

Exterior front

1. Engine hood

2. Windshield

3. Wiper and washer switch

4. Power windows (if so equipped)

5. Door locks. NISSAN Intelligent Key (if so equipped). Key fob (if so equipped). Keys

6. Mirrors

7. Tire pressure. Flat tire. Tire chains

8. Headlight and turn signal switch. Replacing bulbs

9. Fog light switch (if so equipped)

Refer to the page number indicated in parentheses for operating details.
