Exploded View - Fixed Seatback
FIXED SEATBACK
1. Headrest holder (locked) 2. Headrest holder (free) 3. Rear seatback assembly 4. Seatback trim 5. Seatback pad 6. LATCH bracket (RH) 7. Seat cushion assembly 8. Seat cushion trim 9. Seat cushion pad 10. Seat cushion hook 11. LATCH bracket (LH) 12. Headrest

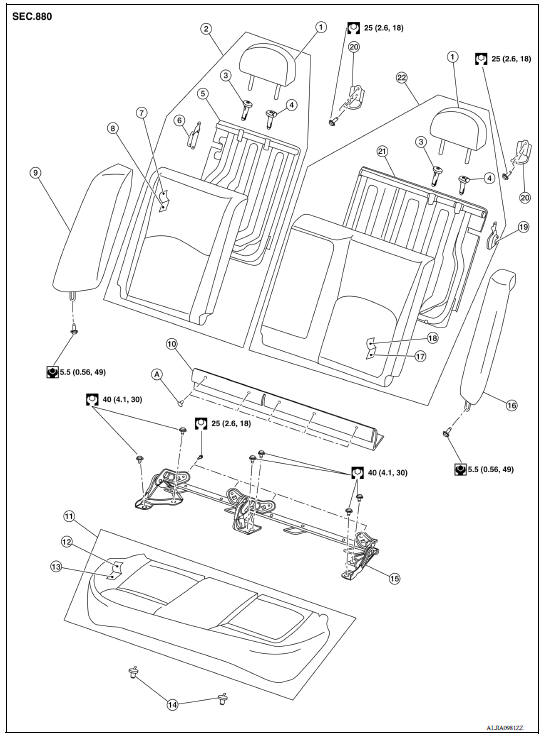

Exploded View - 60:40 Split Seatback
60:40 SPLIT SEATBACK
1. Headrest 2. Rear seatback assembly (RH) 3. Headrest holder (free) 4. Headrest holder (locked) 5. Rear seatback frame (RH) 6. Seatback latch assembly (RH) 7. Seatback trim (RH) 8. Seatback pad (RH) 9. Rear seat bolster (RH) 10. Seatback hinge finisher 11. Seat cushion assembly 12. Seat cushion trim 13. Seat cushion pad 14. Seat cushion hook 15. Seatback hinge assembly 16. Rear seat bolster (LH) 17. Seatback pad (LH) 18. Seatback trim (LH) 19. Seatback latch assembly (LH) 20. Seatback striker 21. Rear seatback frame (LH) 22. Rear seatback assembly (LH) A. Seatback hinge finisher clips
SEAT CUSHION
1. Seat cushion pad 2. Seat cushion trim A. Hog rings
Disassembly
NOTE: Remove all pieces of hog rings and discard them.
Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
NOTE:
FIXED SEATBACK
1. Seatback pad 2. Seatback trim A. Hog rings
Disassembly
CAUTION: Before removing/installing the headrest holder, check its orientation (front/rear and right/left)
3. Remove the hog rings from the back side of the rear seatback assembly.
4. Remove the hog rings from the front side of the rear seatback assembly and separate the seatback trim from the seatback pad.
NOTE: Remove all pieces of hog rings and discard them.
Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
NOTE:
DISASSEMBLY
3. Release the J-hook retainer (C), the clips (A), and unzip the seatback trim zippers (B).
4. Reach up through the seatback trim and release locks as shown and remove the headrest holders.
CAUTION: Before removing/installing the headrest holder, check its orientation (front/rear and right/left).
5. Remove the seatback trim and seatback pad from the seatback frame.
6. Separate the seatback trim from the seatback pad.
a. Remove the hog rings and separate the seatback trim from the seatback pad.
: Hog ring
(1) Seatback trim (LH)
(2) Seatback trim (RH)
NOTE: Remove all pieces of hog rings and discard them.
7. Remove the bolts (A) and the rear seatback latch assembly (1) from the seatback frame (2).
Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
NOTE:
PASSENGER SIDE : Exploded View WITH REMOVABLE HEADREST 1. Seatback trim 2. Seatback pad 3. Headrest 4. Headrest holder (free) 5. Headrest holder (locked) 6. Chute rod 7. Seat frame assembly 8. ...
WITH INTELLIGENT KEY SYSTEM ...
Oil cooler
Exploded View
1. Radiator hose (upper) 2. Hose clamp 3. Radiator hose (lower)
4. Hose clamp 5. Water hose 6. Oil cooler
7. Connector bolt 8. Water hose 9. Oring
A. To radiator (upper side) B. To radiator (lower side) 10. Relief valve
Removal and Installation
REMOVAL
NOTE:
When removing co ...
Clutch piping
Exploded View
1. CSC (Concentric Slave Cylinder) 2. Clutch tube 3. Clutch damper
4. Bracket 5. Master cylinder
Hydraulic Layout
1. Clutch tube 2. Lock pin 3. CSC (concentric slave cylinder)
4. Clutch damper 5. Master cylinder 6. Clutch pedal
Removal and Installation
CAUTION:
Do not ...
