Engine compartment check locations

HR16DE Engine

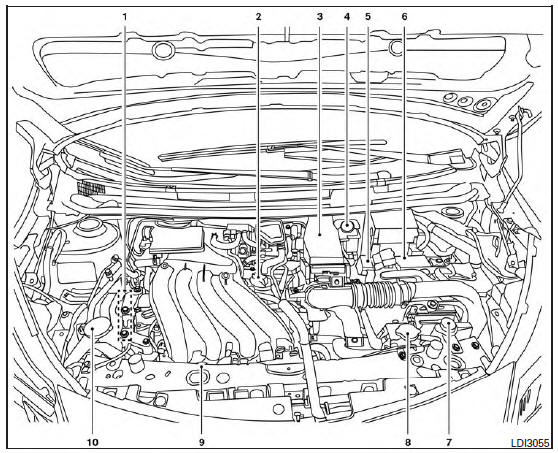

1. Drive belt location

2. Engine oil filler cap

3. Air cleaner

4. Brake and clutch (if so equipped) fluid reservoir

5. Fusible link

6. Battery

7. Engine coolant reservoir

8. Radiator cap

9. Engine oil dipstick

10. Windshield-washer fluid reservoir

Refer to the page number indicated in parentheses for operating details.
