Nissan Versa (N17): Front door finisher

Nissan Versa 2nd generation (N17) Service Manual / Body interior / Interior (INT) / Front door finisher

Exploded View

Exploded View

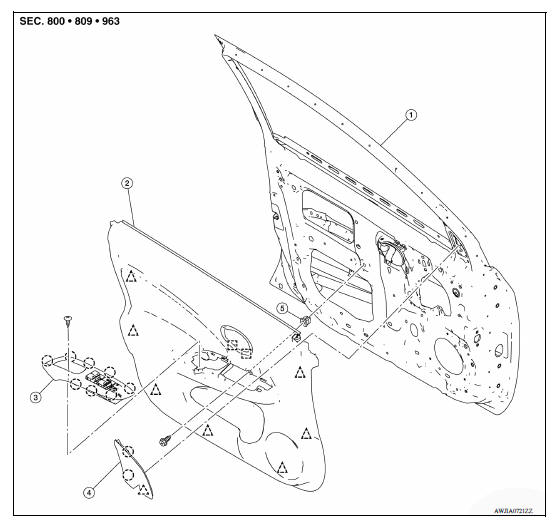

1. Front door panel 2. Front door finisher 3. Main power window and door lock/ unlock switch finisher (if equipped) 4. Front door corner finisher 5. Grommet Metal clip Clip Pawl

Removal and Installation

REMOVAL

  1. Fully open front door window.
  2. Remove front door corner finisher. Refer to MIR "FRONT DOOR CORNER FINISHER : Removal and Installation".
  3. Remove power window and door lock/unlock switch and finisher as an assembly (if equipped). Refer to PWC "Removal and Installation" (LH) or PWC "Removal and Installation" (RH).
  4. Remove front door finisher.

a. Remove front door finisher bolt (A).

REMOVAL

b. Release front door finisher clips and metal clips using a suitable tool (A) and remove front door finisher as shown.

: Clip

: Metal clip

CAUTION: Apply protective tape (B) on the door panel and/or door finisher to protect from damage.

REMOVAL

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When installing front door finisher, make sure the clips and metal clips are securely pressed into door panel holes.

Squeak and rattle trouble diagnoses

Rear door finisher

Exploded View 1. Rear door panel 2. Rear door finisher 3. Rear power window switch finisher (if equipped) 4. Grommet Clip Metal clip Pawl Removal and Installation REMOVAL Fully open r ...
