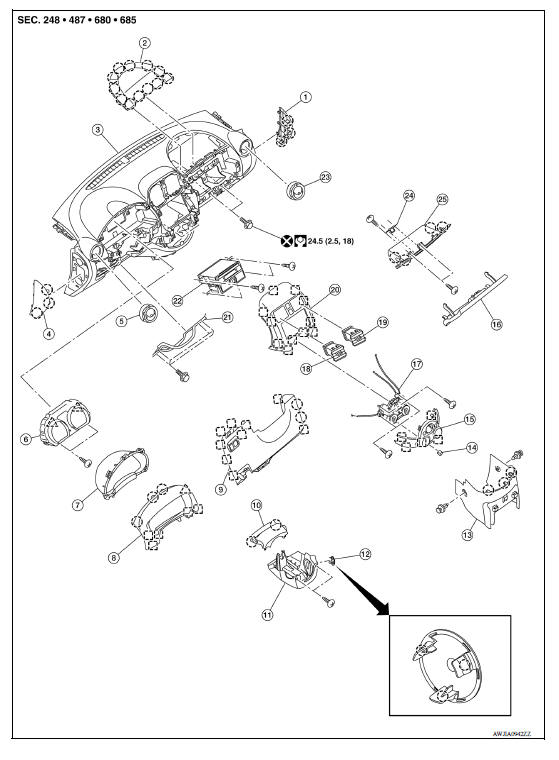

Exploded View

1. Instrument side finisher (RH) 2. Passenger air bag module 3. Instrument
panel assembly
4. Instrument side finisher (LH) 5. Ventilator grilles (LH) 6. Combination meter
7. Combination meter finisher 8. Cluster lid A 9. Instrument lower panel LH
10. Steering column upper cover 11. Steering column lower cover 12. Steering
lock escutcheon
13. Center console lower 14. Control knob 15. A/C control finisher
16. Glove box lid 17. A/C control 18. Ventilator grilles center (LH)
19. Ventilator grilles center (RH) 20. Cluster lid C 21. Lower knee protector (LH)
22. Audio unit or AV control unit (if
equipped)
23. Ventilator grilles (RH) 24. Glove box striker
25. Glove box
Metal clip
Clip
Pawl
Removal and Installation
CAUTION:
REMOVAL
: Pawl

6. Release the pawls using a suitable tool and then remove instrument side finisher (RH) by pulling rearward.
: Pawl

a. Remove intake door lever knob (1).
b. Pull left side of A/C control finisher (2) rearward to release left side metal clips.
: Metal clip
c. Pull right side of A/C control finisher (2) rearward to release right side metal clips and remove A/C control finisher.
: Metal clip

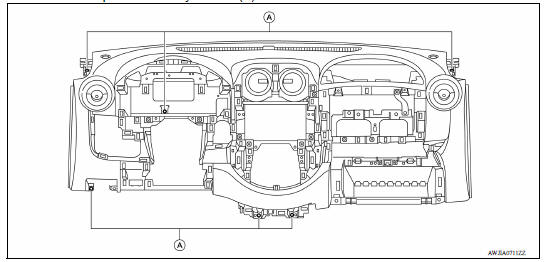

a. Remove instrument panel assembly screws (A).

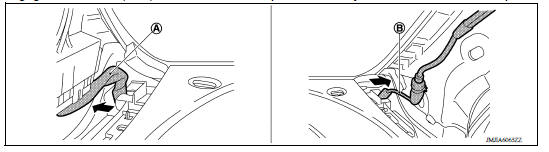

b. Disengage the harness (A, B) from the instrument panel assembly at the base of each front pillar.

c. Remove instrument panel assembly through passenger door opening.
CAUTION:
19. Removal of the following components is only necessary if replacing the instrument panel assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
