Nissan Versa (N17): Passenger air bag module

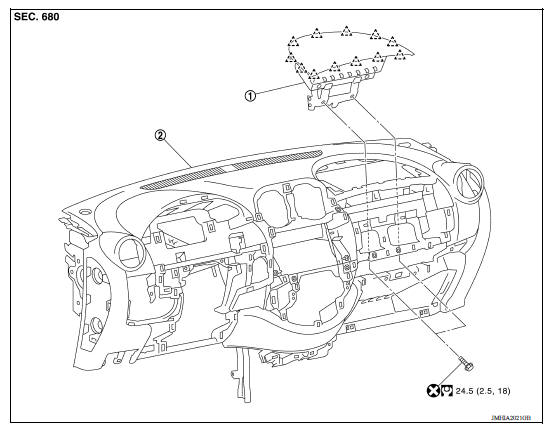

Exploded View

1. Passenger air bag module 2. Instrument panel assembly
Pawl
Removal and Installation
WARNING:
- Before servicing, turn ignition switch OFF, disconnect both the
battery negative and positive terminals,
then wait at least three minutes.
- Always work from the side of air bag module. Do not work in front
of it.
- Do not use the air tools or electric tools for servicing.
- Always place the passenger air bag module with pad side facing
upward.
: Upward

CAUTION:
- Do not insert a tool between passenger air bag module and
instrument panel assembly. Doing so
may cause damage.
- Do not impact the passenger air bag module.
- Replace the passenger air bag module if it has been dropped
or sustained an impact.

- Do not insert any foreign objects (screwdriver, etc.) into the
passenger air bag module.
- Do not disassemble the passenger air bag module.
- Do not expose the passenger air bag module to temperatures
exceeding 90 C (194 F).
- Do not allow oil, grease, detergent, or water to come in contact
with the passenger air bag module.
REMOVAL
- Remove the glove box assembly. Refer to IP "Removal and Installation".
- Disconnect the passenger air bag module harness connector
(A) from passenger air bag module.
- Remove the passenger air bag module bolts (B).

4. Disengage passenger air bag module pawls
with hands.
Pawl

INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not use the old bolts after removal, replace with the new
bolts.
- Do not damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after
repair or replacement of the malfunctioning
parts, reset the memory using self-diagnosis or CONSULT. Refer to SRC "SRS
Operation
Check".
- After the work is completed, check that no system malfunction is
detected by air bag warning lamp.
