Nissan Versa (N17): Rear RH

Nissan Versa 2nd generation (N17) Service Manual / Body exterior, doors, roof & vehicle security / Door & lock (DLK) / Rear RH

REAR RH : Component Function Check

1.CHECK FUNCTION

  1. Select DOOR LOCK of BCM using CONSULT.
  2. Select DOOR LOCK in ACTIVE TEST mode.
  3. Touch ALL LOCK or ALL UNLK to check that it works normally.

Is the inspection result normal?

YES >> Door lock actuator is OK.

NO >> Refer to DLK "REAR RH : Diagnosis Procedure".

REAR RH : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK "POWER DOOR LOCK SYSTEM : Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

  1. Turn ignition switch OFF.
  2. Disconnect rear door lock actuator RH connector.
  3. Check voltage between rear door lock actuator RH harness connector and ground.

Is the inspection result normal?

YES >> Replace rear door lock actuator RH.

NO >> GO TO 2.

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1. Disconnect BCM connector and all door lock actuator connectors.
  2. Check continuity between BCM harness connector and rear door lock actuator RH harness connector.
  3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK BCM OUTPUT SIGNAL

  1. Connect BCM connector.

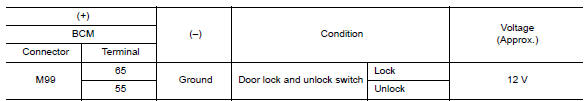

  2. Check voltage between rear door lock actuator RH harness connector and ground.

Is the inspection result normal?

YES >> Check for internal short of each door lock actuator.

NO >> Replace BCM. Refer to BCS "Removal and Installation".
