Driver information & multimedia » Audio, visual & navigation system (AV)
Audio system

AUDIO SYSTEM : System Diagram

AUDIO SYSTEM : System Diagram

AUDIO SYSTEM : System Description

AUDIO SYSTEM

The audio system consists of the following components

  • Audio unit
  • Front door speakers
  • Rear door speakers (if equipped)
  • Antenna amp.
  • Rod antenna

When the audio system is ON, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door speakers (if equipped).

Refer to Owner's Manual for audio system operating instructions.

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

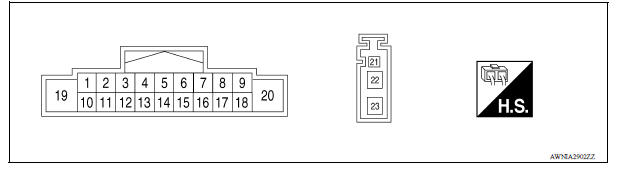

TERMINAL LAYOUT

TERMINAL LAYOUT

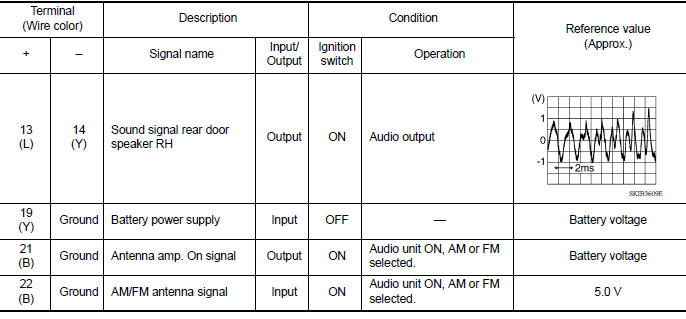

PHYSICAL VALUES

PHYSICAL VALUES

PHYSICAL VALUES

WIRING DIAGRAM

BASE AUDIO

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BASIC INSPECTION
