CAUTION:
REMOVAL
WARNING: Bodily injury may occur if hood assembly is not supported properly when removing hood assembly.
CAUTION: Use two people when removing or installing hood assembly due to its heavy weight.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:

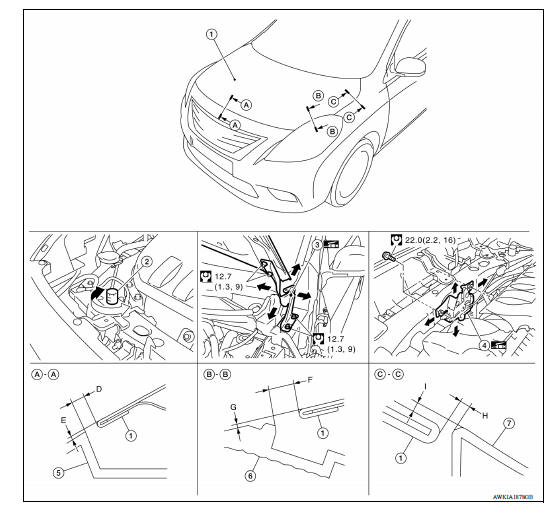

1. Hood assembly 2. Hood bumper rubber 3. Hood hinge (LH) 4. Hood lock assembly 5. Front bumper fascia 6. Front combination lamp (LH) 7. Front fender

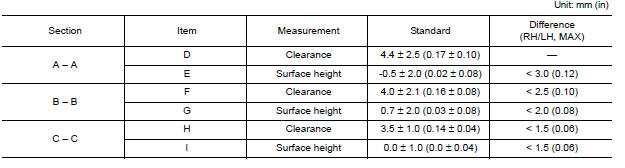

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specification, adjust them
according to the adjustment procedure.

ADJUSTMENT PROCEDURE
Check hood lock assembly and primary striker for looseness.

CAUTION: If any looseness is felt in hood striker or hood lock assembly, rotate bumper rubber more than 1/8 of a rotation.

7. Check that primary latch (1) is securely engaged with primary striker (2) when hood is dropped with hood's own weight from approximately 200 mm (7.9 in) height.

8. Close hood assembly with a static closing force of 300 - 490 N (30.6 - 50.0 kg-f, 67.4 - 110 lb-f).

HOOD HINGE : Removal and Installation REMOVAL Remove hood assembly. Refer to DLK "HOOD ASSEMBLY : Removal and Installation". Remove hood support rod and grommet. Refer to DLK " ...
Ignition coil, spark plug and rocker cover
Exploded View
1. Ignition coil 2. Spark plug 3. Rocker cover
4. Hose cramp 5. PCV hose 6. PCV valve
7. Oring 8. Gasket 9. Oil filler cap
10. Oring 11. Intake camshaft position sensor 12. Exhaust camshaft position
sensor
13. Clip A. To intake manifold
Removal and Installation
REMOVAL
...
Cylinder block
Exploded View
1. Crankshaft position sensor cover 2. Crankshaft position sensor (POS) 3.
Oring
4. Drain plug 5. Cylinder block 6. Oil level gauge
7. Oil level gauge guide 8. Oring 9. Knock sensor 10. Oil temperature sensor
11. Oil pressure sensor 12. Oil jet
13. Top ring 14. Second ring ...
